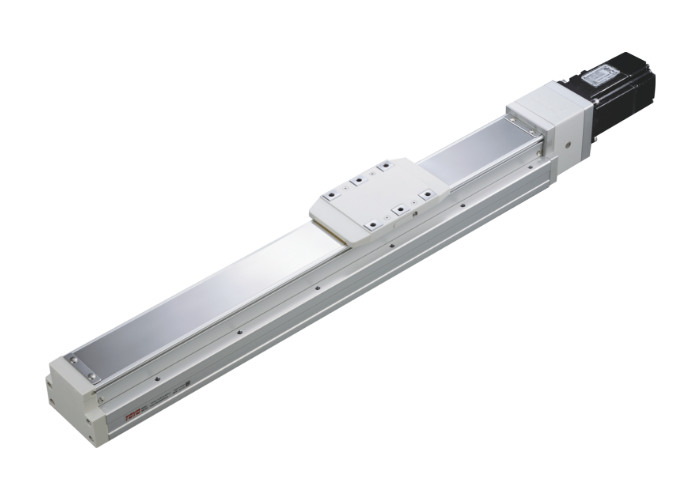

Linear motion modules GTH8

Giá gốc Giá bán: 0₫

Repeatability±0.005(mm)
Ball Screw Lead
5/10/20(mm)
Maximum Speed
250/500/1000(mm/s)
Maximum Payload (Horizontal)
50/30/18(kg)
Maximum Payload (Vertical)
15/8/3(kg)
Rated Thrust
1388/694/347(N)
Stroke/Pitch
50-800 / 50 mm Pitch.

* When the stroke is over 750 mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances.
* Acceleration and deacceleration value is set 0.2 second.
