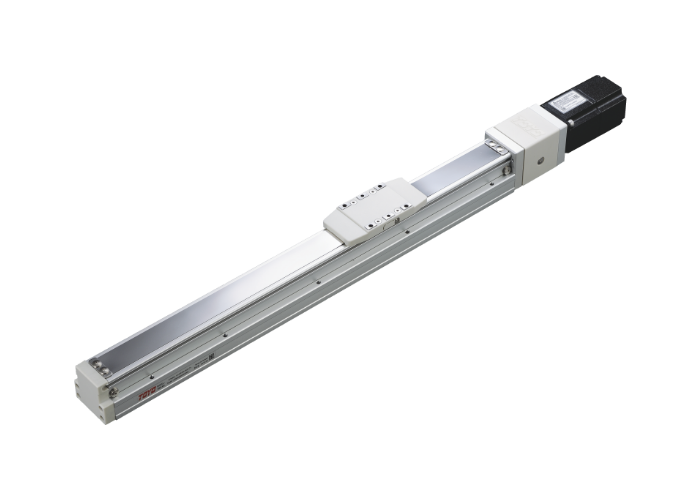

Linear motion modules GTH4

Giá gốc Giá bán: 0₫

Repeatability±0.005(mm)
Ball Screw Lead
2/6/12(mm)
Maximum Speed
100/300/600(mm/s)
Maximum Payload (Horizontal)
25/20/12(kg)
Maximum Payload (Vertical)
8/8/3.5(kg)
Rated Thrust
424/141/71(N)
Stroke/Pitch
50-800 / 50 mm Pitch.


* When the stroke is over 550 mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances.
* Acceleration and deacceleration value is set 0.2 second.
