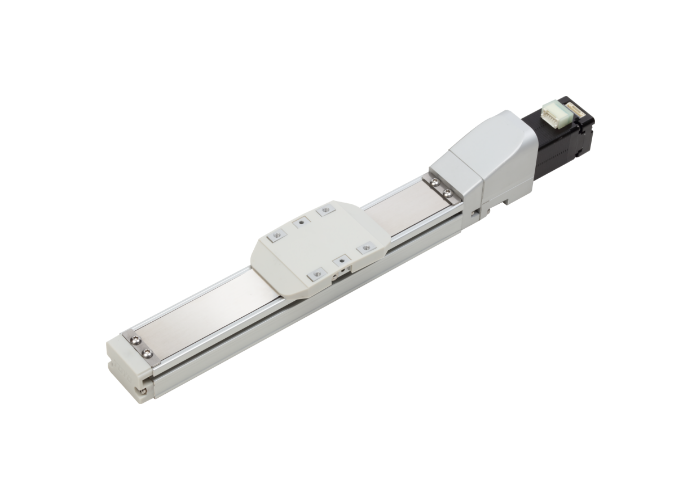

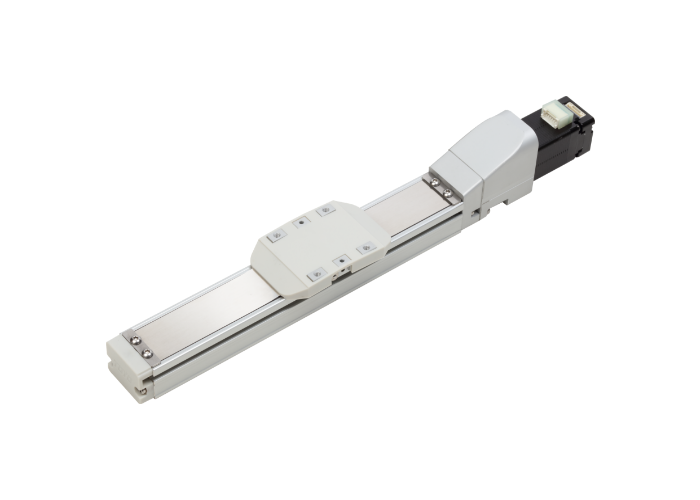

Linear motion modules GTH3

Giá gốc Giá bán: 0₫

performance

Repeatability: ±0.005
Lead: 2 / 8 (mm)
Maximum Rotating speed: 3000 / 3600 (rpm)
Maximum Linear speed: 100 / 480 (mm/s)
Maximum Payload Horizontal use: 13 / 10 (kg)
Maximum Payload Vertical use: 5 / 2 (kg)
Rated Thrust: 352 / 88 (N)
Stroke: 50-500 mm / 50 intervals
Maximum acceleration: 0.3 / 0.3 (G)
Ball screw Basic dynamic load rating: 1811 / 862 (N)
Ball screw Basic static load rating: 2774 / 1099 (N)
Linear slides Dynamic horizontal load: 3144 (N)
Linear slides Static horizontal load: 6707 (N)
Fixed side bearing Basic dynamic load rating: 2819 (N)
Fixed side bearing Static allowable load: 1342 (N)

parts

AC servo motor capacity: 30W
Ball screw outer diameter: C7Φ6 (mm)
Coupling: 4x5 (mm)
Origin sensor | plug-in: T64N2 (NPN+2 meters)
