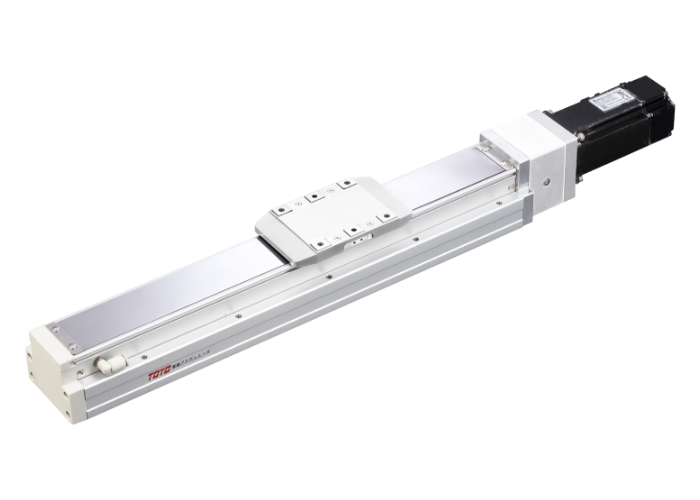

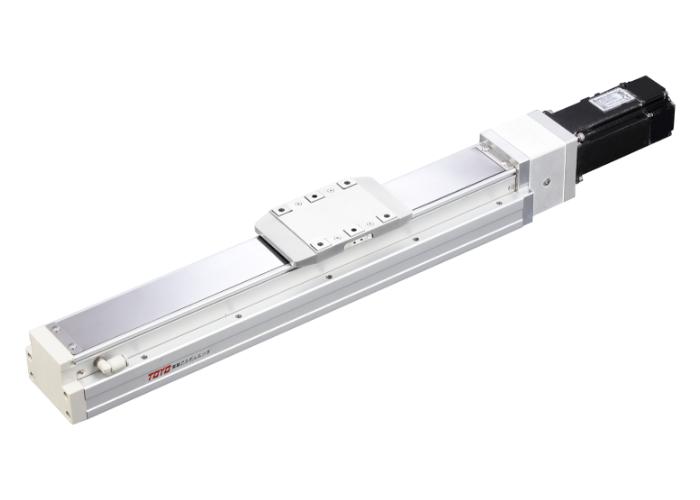

Linear motion modules GCH8 - Toyo Robot
0₫
Mô tả
Ball Screw Lead：5/10/20(mm)
Maximum Speed ：250/500/1000(mm/s)
Maximum Payload (Horizontal)：50/30/18(kg)
Maximum Payload (Vertical)：15/8/3(kg)
Rated Thrust：683/341/174(N)
Stroke/Pitch ：50-1100 / 50 mm Pitch.
* When the stroke is over 550 mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances.
* Acceleration and deacceleration value is set 0.2 second.
Maximum Speed ：250/500/1000(mm/s)
Maximum Payload (Horizontal)：50/30/18(kg)
Maximum Payload (Vertical)：15/8/3(kg)
Rated Thrust：683/341/174(N)
Stroke/Pitch ：50-1100 / 50 mm Pitch.
* When the stroke is over 550 mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances.
* Acceleration and deacceleration value is set 0.2 second.
####
