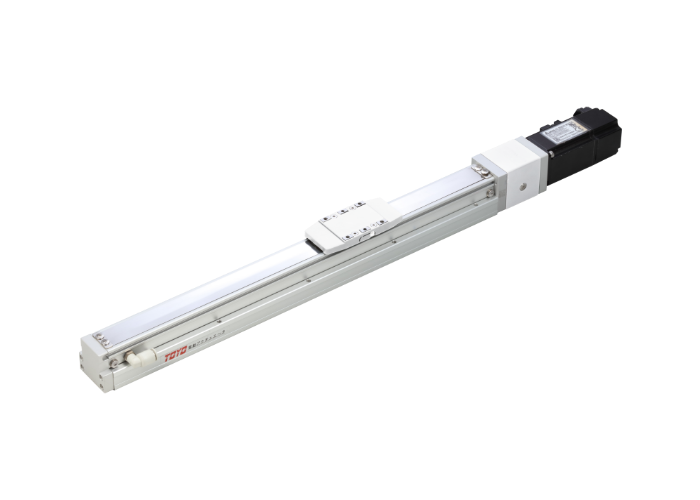

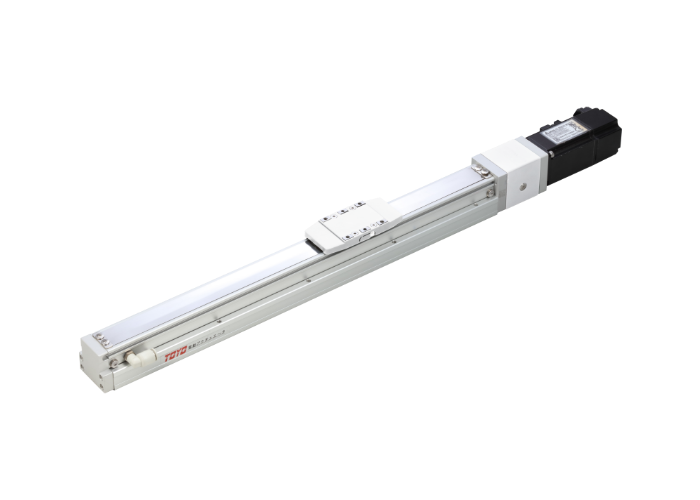

Linear motion modules GCH4 - Toyo Robot

Giá gốc Giá bán: 0₫

Repeatability±0.005(mm)
Ball Screw Lead2/6/12(mm)
Maximum Speed 100/300/600(mm/s)
Maximum Payload (Horizontal)25/20/12(kg)
Maximum Payload (Vertical)8/8/3.5(kg)
Rated Thrust424/141/71(N)
Stroke/Pitch 50-800 / 50 mm Pitch.

* When the stroke is over 550 mm, the run-out of the ballscrew will occur. We recommend to low down the working speed under this circumstances.
* Acceleration and deacceleration value is set 0.2 second.
