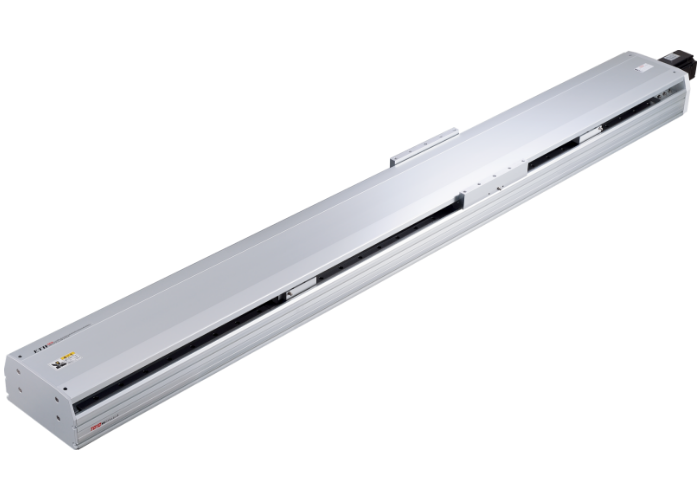

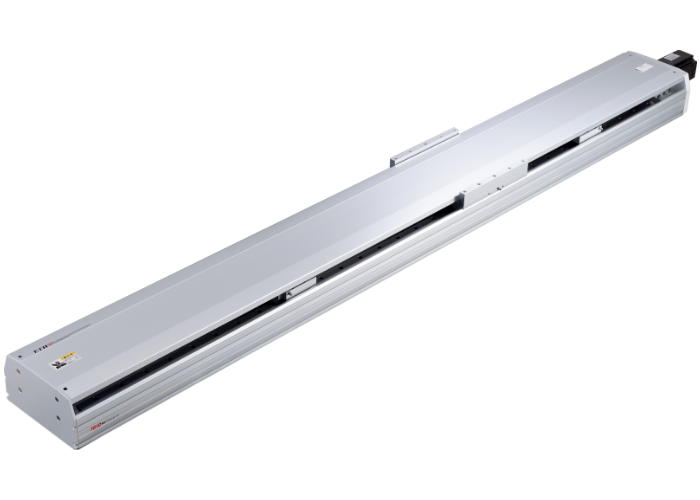

Linear motion modules ETH22M - Toyo Robot
0₫
Mô tả
Repeatability：±0.005(mm)
Ball Screw Lead：5/10/20/40(mm)
Maximum Speed：200/400/800/1600(mm/s)
Maximum Payload (Horizontal)：130/130/85/43(kg)
Maximum Payload (Vertical)：50/40/25/12(kg)
Rated Thrust：2563/1281/640/320(N)
Stroke/Pitch ：800-2400 / 50 mm pitch
*When the stroke is over 1600mm, the run-out of the ball screw will occur .We recommend to low down the working speed under this circumstances.
*Acceleration and deacceleration value is set 0.2 second.
*Motor maximum speed: 2400 RPM
####
