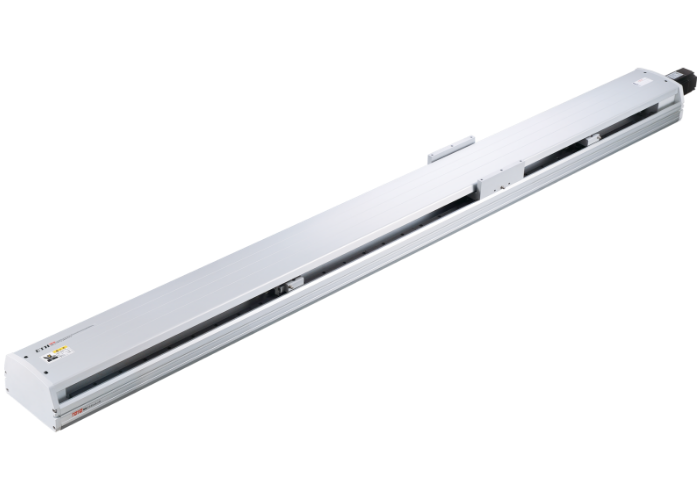

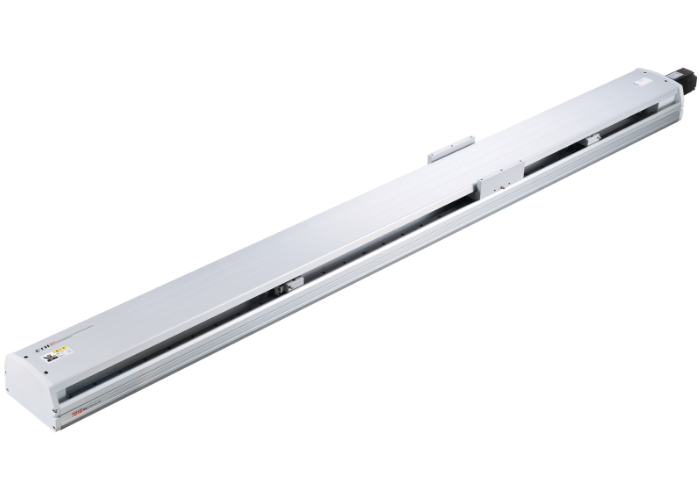

Linear motion modules ETH17M - Toyo Robot

Giá gốc Giá bán: 0₫

Repeatability±0.005(mm)
Ball Screw Lead5/10/20/32(mm)
Maximum Speed200/400/800/1280(mm/s)
Maximum Payload (Horizontal)120/95/50/35(kg)
Maximum Payload (Vertical)40/25/15/12(kg)
Rated Thrust2563/1281/640/400(N)
Stroke/Pitch 800-2200 / 50 mm pitch

*When the stroke is over 1600mm, the run-out of the ball screw will occur .We recommend to low down the working speed under this circumstances.
*Acceleration and deacceleration value is set 0.2 second.
*Motor maximum speed: 2400 RPM
