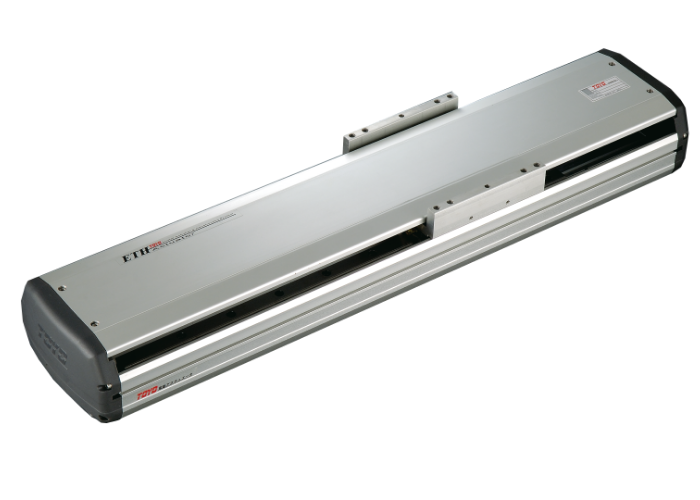

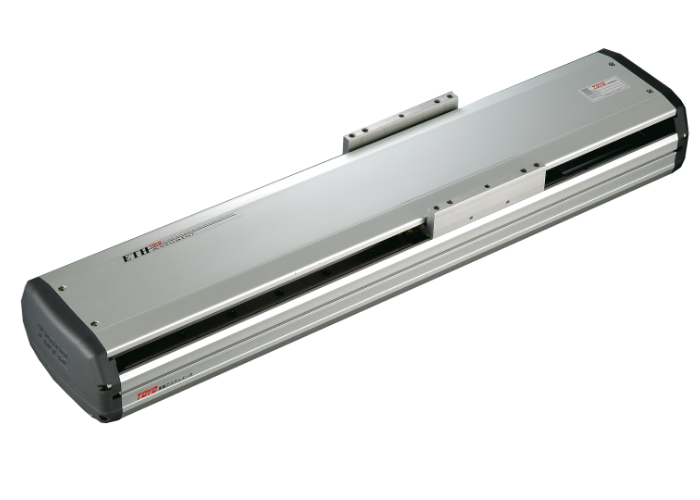

Linear motion modules ETH17 - Toyo Robot

Repeatability：±0.005(mm)
Ball Screw Lead：5/10/20/40(mm)
Maximum Speed：250/500/1000/2000(mm/s)
Maximum Payload (Horizontal)：120/120/83/43(kg)
Maximum Payload (Vertical)：50/40/25/12(kg)
Rated Thrust：2563/1281/640/320(N)
Stroke/Pitch ：50-1250 / 50 mm pitch

*When the stroke is over 850mm, the run-out of the ball screw will occur .We recommend to low down the working speed under this circumstances.
*Acceleration and deacceleration value is set 0.2 second.

####
