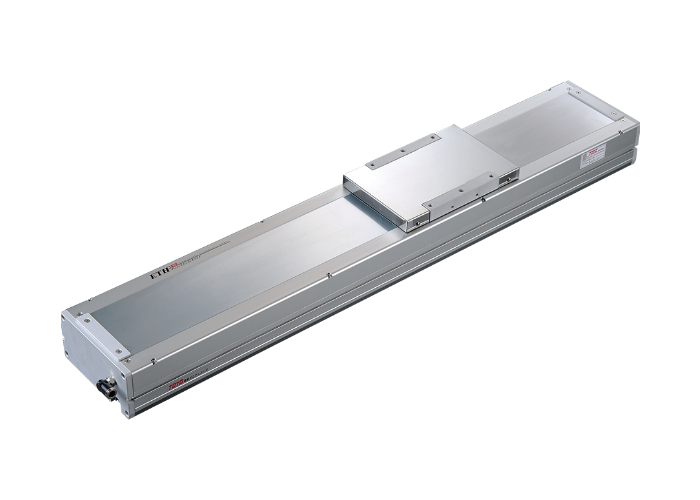

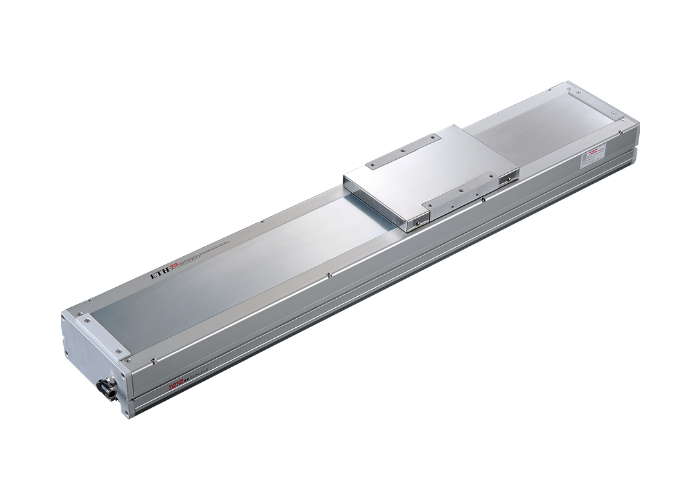

Linear motion modules ECH22 - Toyo Robot

Giá gốc Giá bán: 0₫

Repeatability±0.005(mm)
Ball Screw Lead5/10/25/40(mm)
Maximum Speed250/500/1250/2000(mm/s)
Maximum Payload (Horizontal)150/150/105/43(kg)
Maximum Payload (Vertical)55/45/20/12(kg)
Rated Thrust2565/1281/640/320(N)
Stroke/Pitch 50-1050/ 50 mm pitch

*When the stroke is over 900mm, the run-off the ballscrew will occur.We recommend to low down the working speed under this circumstances.
*Acceleration and deacceleration value is set 0.2 second.
