Features
● Thermal mass flow sensor
● Can measure air velocity and air volume
● Multiple output option : 4 ... 20 mA / 0 ... 10 V / RS-485 / Frequency / Pulse ( Option )
● Built-in temperature compensation, accurate measurement
● Using constant temperature anemometer(CTA) technology, good sensitivity
● Unit setting：[m/s], [ft/s], [Nm³/h], [L/min], [°C], [°F]
● Strong stainless steel housing, for a variety of harsh environme

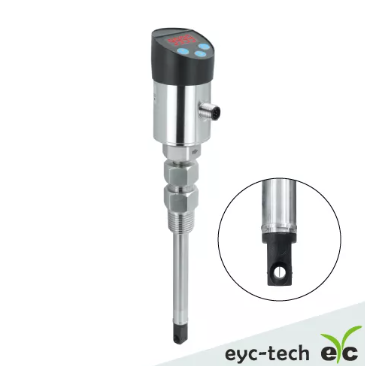

FTM06D is based on thermodynamic principles and can measure air velocity and air volume; there are 2 temperature sensors inside the probe: one for temperature measurement and the other one as a measuring conveyor after heating.
Temperature difference between the two as a basis for measuring flow rate. When the medium flow rate increases, the temperature difference decreases.
The temperature difference is converted to standard signal output after processing, which is why the flow rate can be measured by these two sensors. All-metal housing, suitable for a variety of pipe diameters.
Applications
Industrial process gas supply / Consumption and dry flow monitoring / Compressed air consumption measurement / Buildings / Factories / Clean rooms / Hospitals / Semiconductors / Electronics / Paper / Printing / Textiles / Steel / Food / Chemicals / Pharmaceuticals / Biotechnology industries
Specification
Input
Air velocity sensor
Thermal mass flow sensor meter
Measuring range
Air: 0, ..., 120 Nm/s
Minimum initial value
0.2 m/s
Installation angle effect
＜3% of the measured value (When the installation angle＜10°)
Output
Output signal
4, ..., 20 mA / 0, ..., 10 V / RS-485
Frequency ( 0, ..., 100 Hz )
Pulse ( 1, ..., 100 l/pulse, option )Signal connection
3-wire
Warm-up time
About 60 sec
Response time
t90≦3 sec
Load resistance
Voltage output: ≧100 KΩ
Current output: ≦250 ΩAccuracy
Accuracy
±1.5% F.S.
Temp. influence
0.05% / °C
Repeatability
0.50%
Environmental
Medium
Non-corrosive gas
Operating Temp. & Humid.
0, ..., 50°C / 20, ..., 90%RH(Non-condensing)
Storage Temp.
-20, ..., 85°C
Fitting pressure
16 bar
Electrical
Power supply
DC 24 V ±10%
Current consumption
24 V: 110 mA
Electrical connection
M12
Installation
Duct type
Metal flange mount
R1/2" movable threadCertification
Certification
CE
Protection
IP rating
IP65(IP67option)
Electrical protection
■ Reverse polarity ■ Over-voltage ■ Short-circuit
Material
Body
SUS304
Probe
SUS304
Probe head
PC with glass fiber
Weight
480 g
Display & Operation(See manual for details)
Display value
4 digits, Adjustable brightness
Measurement display
Out1(Default is Flow m/s )
Unit selection
Unit setting: [m/s], [ft/s], [Nm³/h], [L/min], [°C], [°F]
Function selection
Output option (0, ..., 10 V / 4 ... 20 mA)
Pipe setting range (20, ..., 9999 mm)
