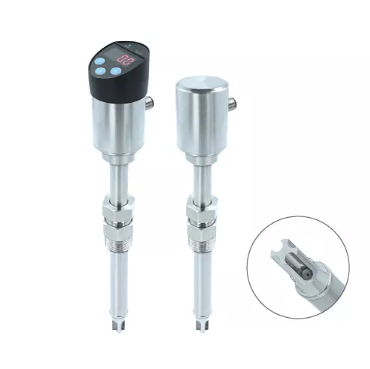

FDM06S Differential Pressure Type Air Flow Transmitter

Giá bán: 0₫

Model : FDM06S

Features : Adopting the differential pressure principle for air flow measurement enables bi-directional airflow measurement and Calculates medium density and mass flow rate.
Sensor type : Differential pressure sensor
Measuring range : Standard version : ± (0.8, ..., 40 m/s) / High-pressure version : ± (10, ..., 200 m/s)
Output : 4 ... 20 mA + RS-485 / 0 ... 10 V + RS-485 / Frequency (0 ... 100 Hz) + RS-485 / Pulse (Option) + RS-485
Accuracy : ±1.5% F.S. (Option±1% F.S.)
IP rating : IP65 (Body) / IP20 (Probe head)

Số lượng

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

Features
● Adopting the differential pressure principle for air flow measurement
● Enable bi-direction air flow measurement
● Measures differential pressure, pressure, and temperature simultaneously
● Special diversion design reduces the impact of air flow turbulence
● Calculate medium density and mass flow rate
● Rugged and durable design for high temperature and high-pressure environment
Applications
Air compressor system / Industrial process / Exhaust system

Specification

Input
Sensor type	Differential pressure sensor
Measuring range	Standard version: ± (0.8, ..., 40 m/s) High-pressure version : ± (10, ..., 200 m/s)
Installation angle effect	＜3% of the measured value (When the installation angle＜10°)
Output
Output	4, ..., 20 mA + RS-485 0, ..., 10 V + RS-485 Frequency (0, ..., 100 Hz ) + RS-485 Pulse (Option) + RS-485
Preset output	Out1: Air velocity
Signal connection	3-wire
Warm-up time	＜60 sec
Response time	t90＜5 sec
Load resistance	Current output: ≦500 Ω Voltage output: ≧10 KΩ
Accuracy
Accuracy	±1.5% F.S. (Option±1% F.S.)
Temp. influence	0.05% / °C
Electrical
Power supply	DC 24 V±10%
Current consumption	＜0.1 A
Overvoltage protection	DC: < 30 V
Electrical connections	M12 connector
Environmental
Measuring medium	Air
Operating Temp.	-20, ..., +60°C(Display) -20, ..., +80°C(No display)
Operating Humid.	0, ..., 95%RH(Non-condensing)
Probe operating Temp.	100°C (Optional 200°C)
Storage Temp.	-20, ..., +80°C
Storage Humid.	0, ..., 95%RH(Non-condensing)
Probe pressure	Standard version: 2 bar High-pressure version: 10 bar
Installation
Duct type	3/4" PT movable thread
Flange pipe type	2″, ..., 6″
Inline type	2″
Certification
Certification	CE
Protection
IP rating	IP65 (Body) / IP20 (Probe head)
Electrical protection	■ Reverse polarity ■ Over-voltage ■ Short-circuit
Material
Display	PC with glass fiber
Housing	SUS304
Probe	SUS304
Probe head	SUS304
Weight (without cable)	575 g (Display, probe length 180 mm) 692 g (Display, probe length 330 mm) 602 g (No display, probe length 180 mm) 719 g (No display, probe length 330 mm)
