ESPE Safety Sensor ESS3210NL-5U
0₫
Mô tả
| Product Parameter | Specification |
|---|---|
| Safety Standard | Type 4 (IEC 61496-1/-2), Cat.4/PLe (ISO 13849-1) |
| Power Supply | DC24V ±20% |
| Capacity | <5W |
| Beam Space | 10mm, 20mm, 40mm |
| Resolution | 14mm, 25mm, 45mm |
| Beams | 10mm: 16, 20……16020mm: 8, 10……8040mm: 4, 6……40 |
| Protection Height | S = N × Beam Space + Resolution (N = Beams) |
| Light Wavelength | 940nm |
| Response Time | ≤2 × (N × 0.1 + 3) ms (N is Beams) |
| Safety Output (OSSD) | PNP or NPNLoad current ≤200mA (Temperature >40℃: ≤200mA)Residual voltage ≤1V (except voltage drop caused by cable extension)Leakage current ≤0.1mA |
| Protective Circuit | Overload voltage protection, reverse polarity protection and overcurrent protection |
| Sensing Distance | 0.2–5m, 0.6–12m (If light reflection exists, please inform us.) |
| Against Optical Interference | 10000 Lux (Angle >2.5°) |
| Sensing Method | Through-beam |
| Synchronization | Optical-syn / Wire-syn |
| Enclosure Material | Aluminum alloy |
| Enclosure Protection Rate | IP65 |

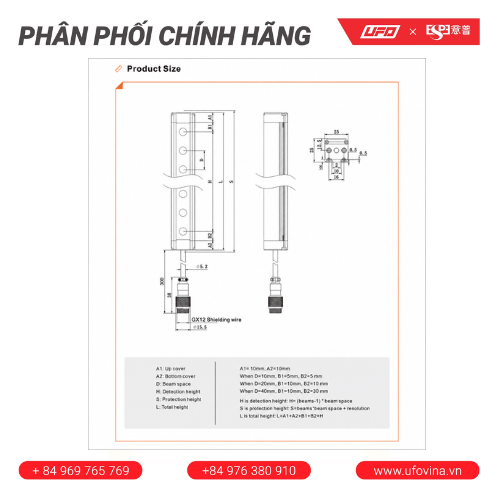

| Sectional Size | 30 × 28mm |
| Vibration Resistance | 10–55Hz, amplitude 0.35±0.05mm, 20 cycles in X, Y and Z directions |
| Shock Resistance | 100m/s² (10G), 16ms pulse, 1000 times in X, Y and Z directions |
| Ambient Operating Temperature | -10℃ ~ 55℃ (No freezing) |
| Storage Temperature | -30℃ ~ 70℃ (No freezing) |
| Ambient Operating Humidity | At 20℃, max. humidity 85% |
| T (Operation Time) | 20 years (ISO 13849-1) |
