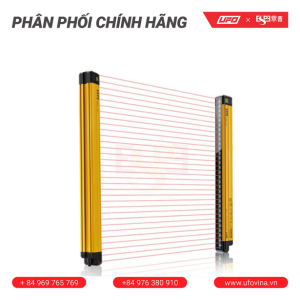

ESPE Safety Sensor EFP3210NL-5U
0₫
Mô tả
| Safety standard | Type 4 (IEC 61496-1/-2), Cat.4/PLe (ISO 13849-1) |
| Supply voltage | DC 24V±20% |
| Capacity | <5W |
| Beam space | 10mm, 20mm, 40mm |
| Resolution | 14mm, 25mm, 45mm |
| Beams | 10mm : 16, 20……160 20mm : 8, 10……80 40mm : 4, 6……40 |
| Protective height | S=N*Beam space+Resolution, N=Beams |
| Wave length | 940nm |
| Response time | ≤2*(N*0.1+3)ms (N is beams) |
| Type of output（OSSD） | PNP or NPN Load currents200mA (Temperature exceed 40℃≤200 mA), residual voltages1V (any voltage drop caused by cable extension is excepted,), voltage leakages0.1mA. |
| Protective circuit | Overload voltage protection, power supply reverse polarity protection, over current protection. |
| Sensing distance | 0.2~5m、0.6~12m (remark: If have light reflection, please let us know) |
| Anti-optical interference | 10000Lux (angle>2.5°) |
| Sensing method | Through-beam |
| Synchronization | Optical-syn/ Wire-syn |
| Enclosure material | Aluminum alloy |
| Enclosure rating | IP65 |

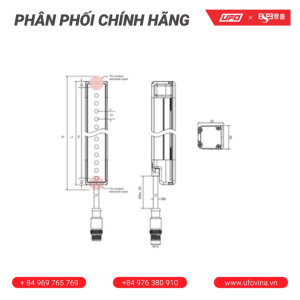

| Section Size | 30*28mm |
| Vibration resistance | 10 ~55 Hz, amplitude 0.35±0.05mm, 20 times each in X, Y, Z direction |
| Shock resistance | 100m/s2 (10G), 16ms pulse 1000 times each at X, Y, Z directions |
| Ambient operating temperature | -10~55℃（no freezing） |
| Storage temperature | -30~70℃（no freezing） |
| Ambient operating humidity | When temperature is 20℃，humidity max. 85% |
| T (Operation time) | 20 years (ISO 13849-1) |
