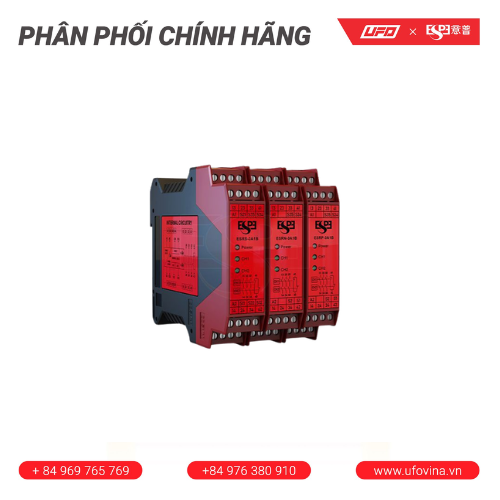

ESPE Safety Relay ESRN-3A1B-U
0₫
Mô tả
| Product Parameter | Specification |
|---|---|
| Reference Standard | ISO 13849-1 (Category 4 / PLe) |
| Safety Level | ISO 13849-1 (Category 4 / PLe) |
| Power Supply | DC24V ±10% |
| Consumption | <3W |
| Response Time | <20ms |
| Suction Buffer Time | <100ms |
| Power-on Restart Time | <1s |
| Protective Circuit | Input power overvoltage protection, anti-reverse protection |
| Safety Input | Double NPN normally closed input (ESRN Type);Double PNP normally closed input (ESRP Type);Dual loop door or emergency stop button (ESRS Type) |
| Input Synchronization | Unlimited S1 is in the front of S2 |
| Safety Output | 3 normally open passive contacts, and 1 normally close passive contact |
| B10 Data | Rated load: 400,000 times; Low load: 2,000,000 times |
| Contact Capacity | AC15:5A/250V; DC13:6A/24V |
| Electrical Lifetime | ≥100,000 times (1NO: 5A250VAC, resistive load, 1s ON / 9s OFF) |
| Mechanical Lifetime | ≥10 million times |
| Vibration Resistance | Frequency 10–55Hz, amplitude 0.35±0.05mm, 20 cycles each in X, Y and Z directions |
| Impact Resistance | Acceleration 10g, pulse duration 16ms, 1000 times each in X, Y and Z directions |
| Working Temperature | -25℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 85℃ |
| Protection Level | Shell/Terminal protection: IP40 / IP20 |
| Mounting | 35mm DIN rail |
| Wire Size | 0.2–2.5mm² |
| Hardware Size | 117mm × 100.6mm × 22.5mm |
