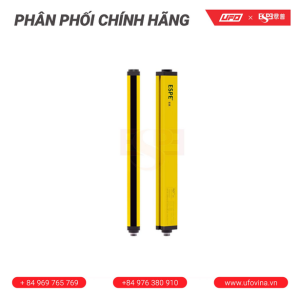

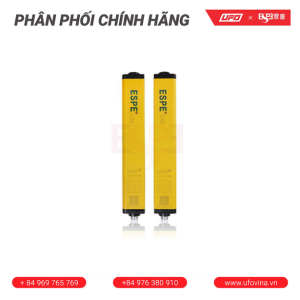

ESPE Classic Type 4 Safety Light Curtain 10ESE310-24N-5-U
0₫
Mô tả
| Safety standard | Type 4 (IEC 61496-1/-2) ,Cat. 4/PL e (ISO 13849-1) |
| Supply voltage | DC 24V±20% |
| Capacity | <5W |
| Beam space | 10mm, 20mm, 40mm |
| Resolution | 20mm, 30mm, 50mm |
| Protective height | Protective height =（N-1）*beam gap (N is beam) |
| )Wave length | 940nm |
| Response time | <10ms |
| Type of output（OSSD） | PNP or NPN Load current 200mA, residual voltage 1V (except for voltage drop c ≤ ≤ aused by cable extension)and leakage current ≤ 1mA. |
| Protective circuit | Overload voltage protection, power supply reverse polarity protection, over current protection. |
| Sensing distance | 0.1~5m、0.1~10m (remark: If have light reflection, please let us know) |
| Anti-optical interference | 10000Lux(I >2.5°) |
| Sensing method | Through-beam type |
| Synchronization | Wire synchronization |
| Enclosure material | Aluminum alloy |
| Enclosure rating | IP65 |
| Housing cross-section | 35*53mm |
| Vibration resistance | 10~55Hz，double amplitude each in X、Y、Z directions for 20 times. |
| Ambient operating temperature | -10~55℃（with no freezing） |
| Storage temperature | -30~70℃（with no freezing） |
| Ambient operating humidity | When temperature is 20℃，humidity max 85% |
