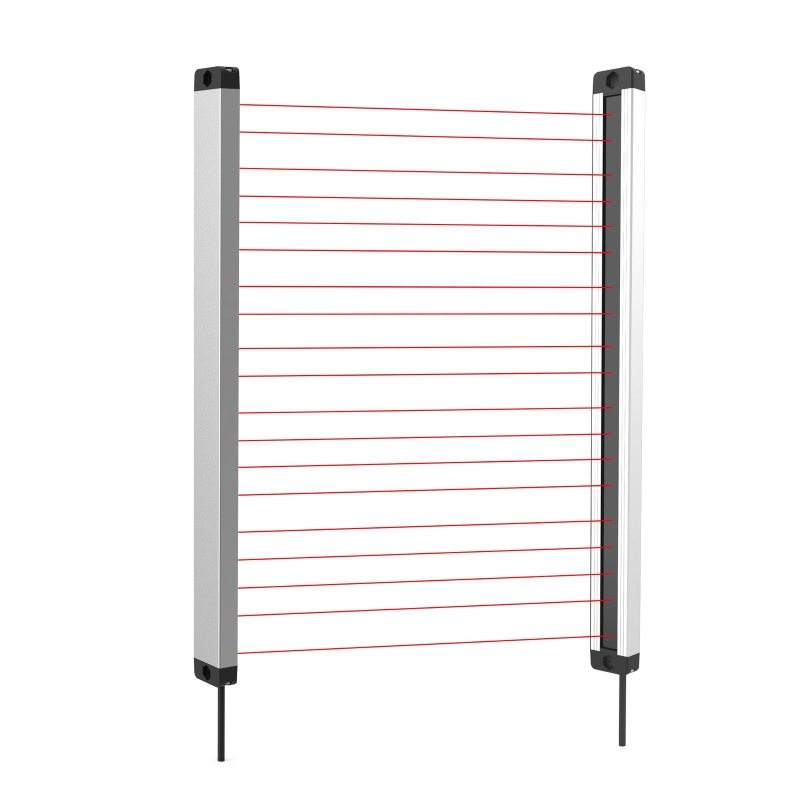

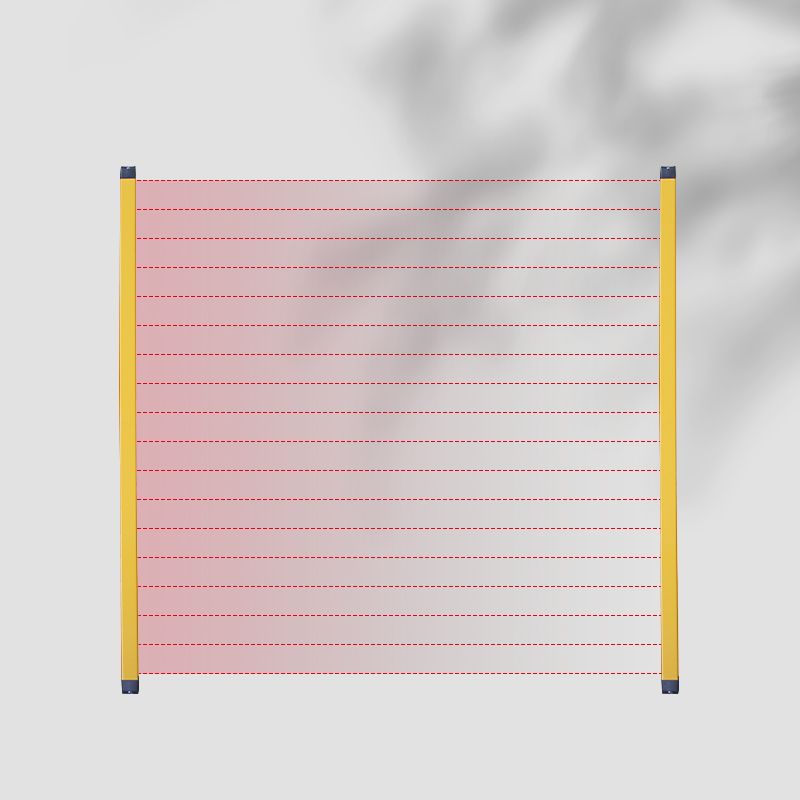

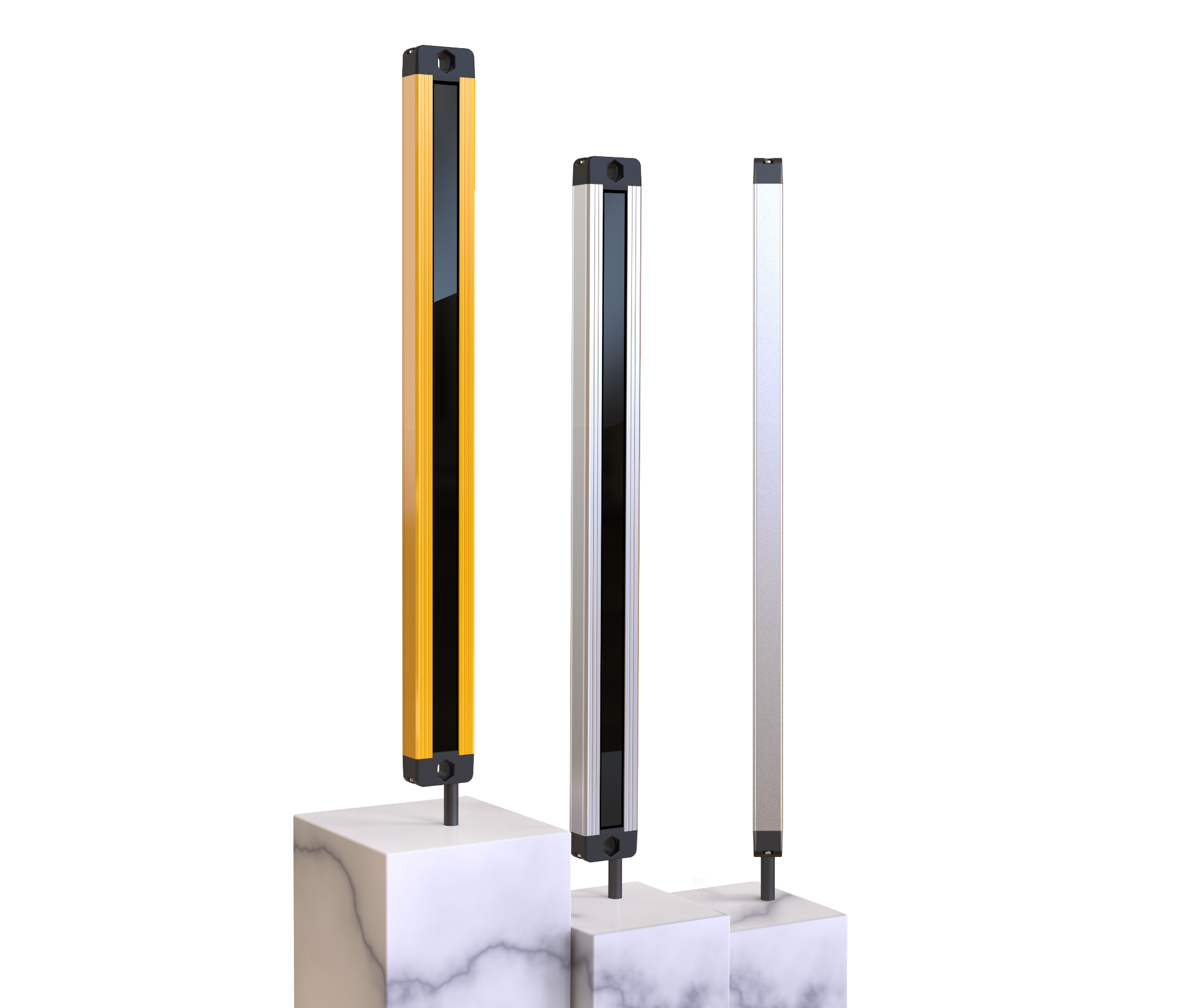

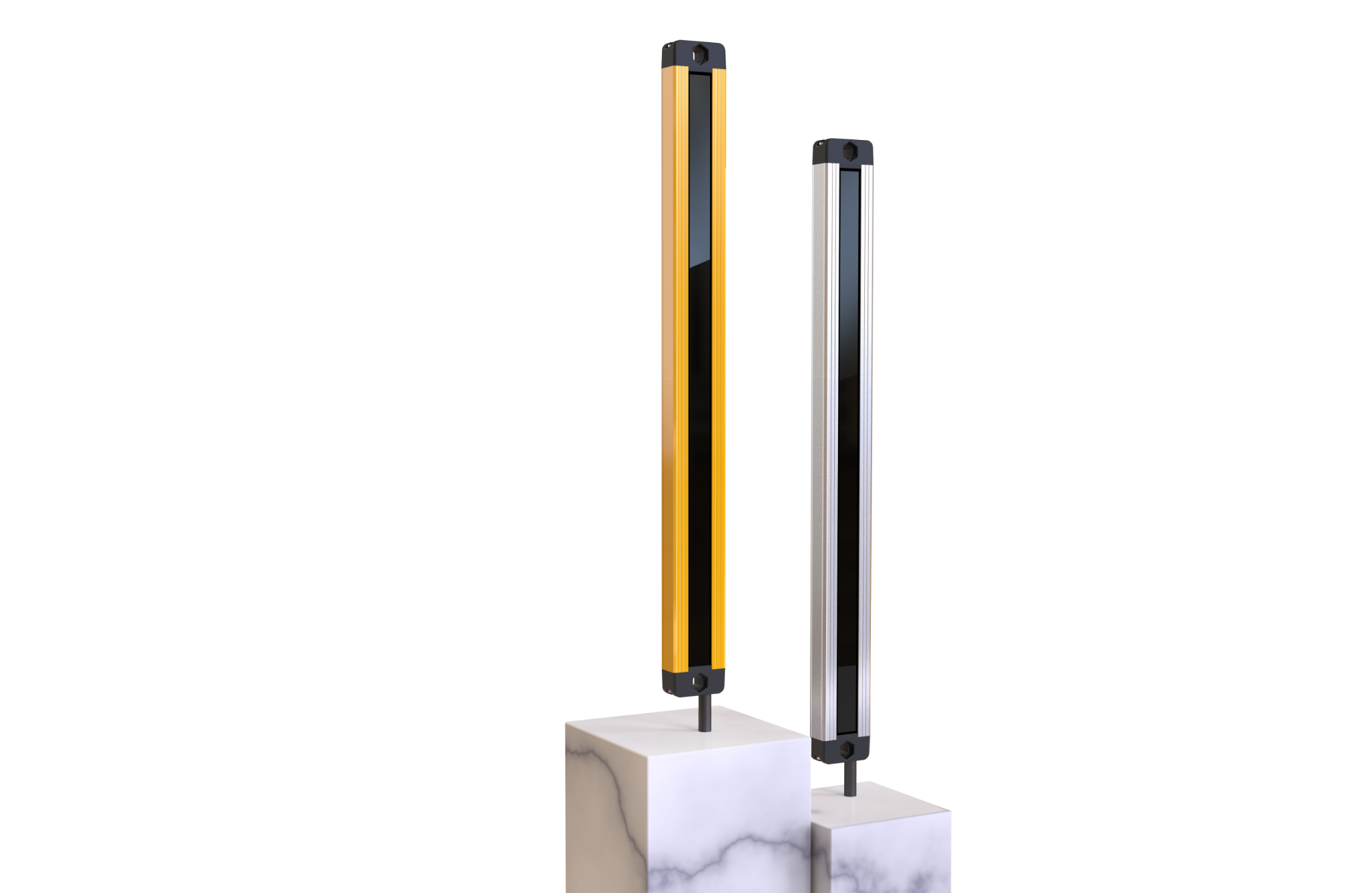

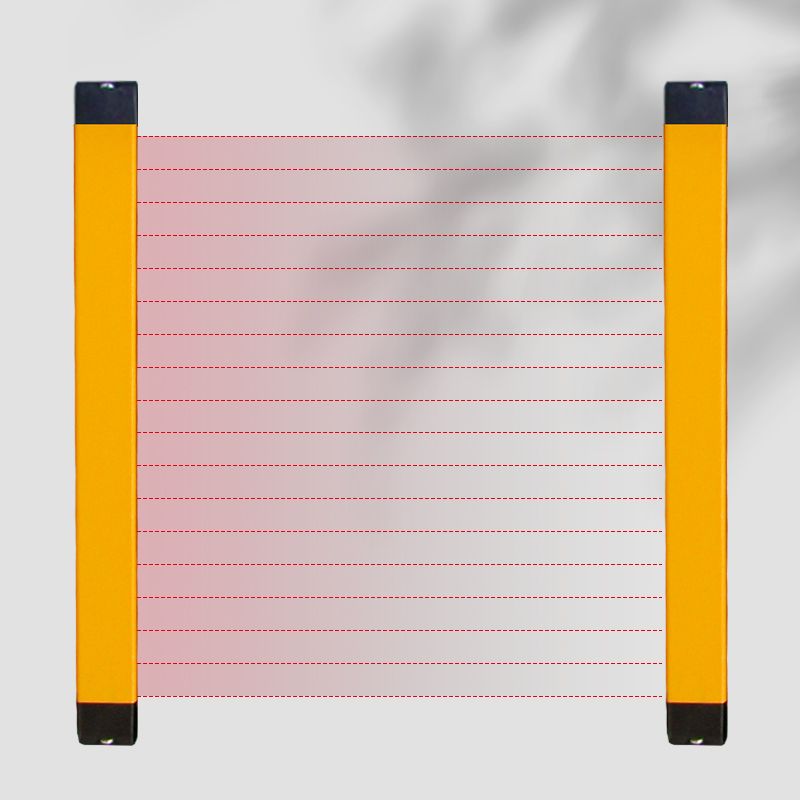

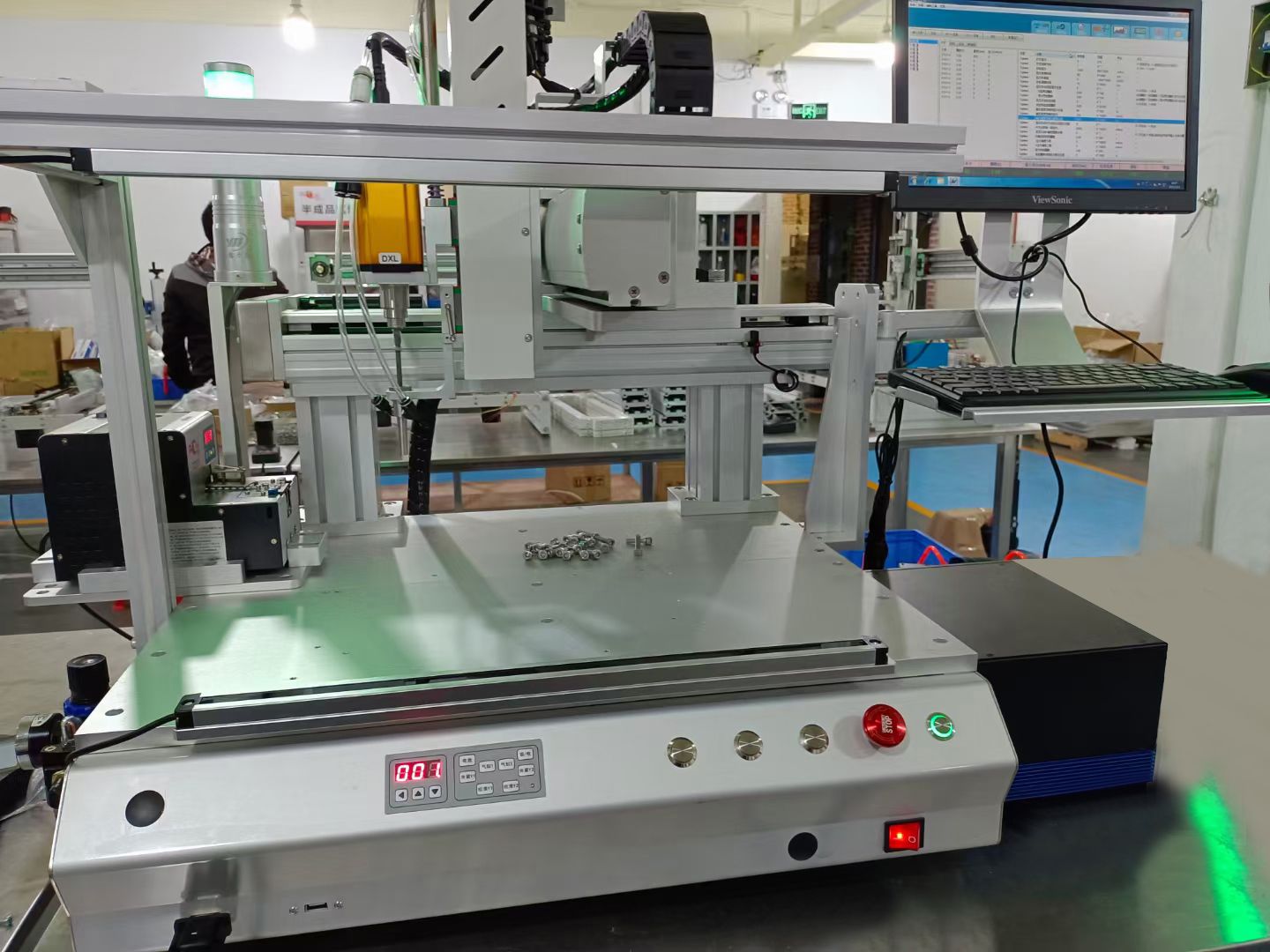

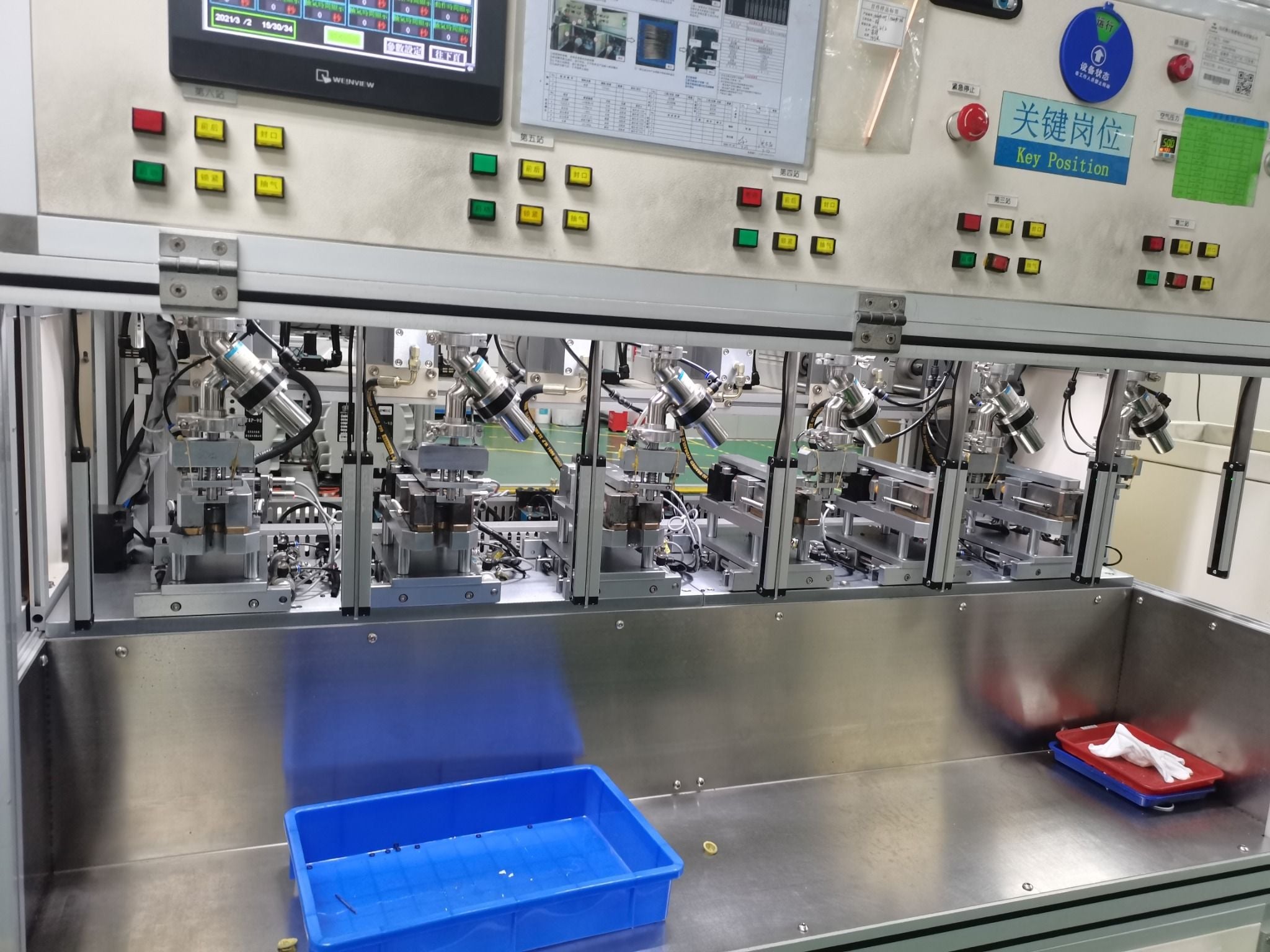

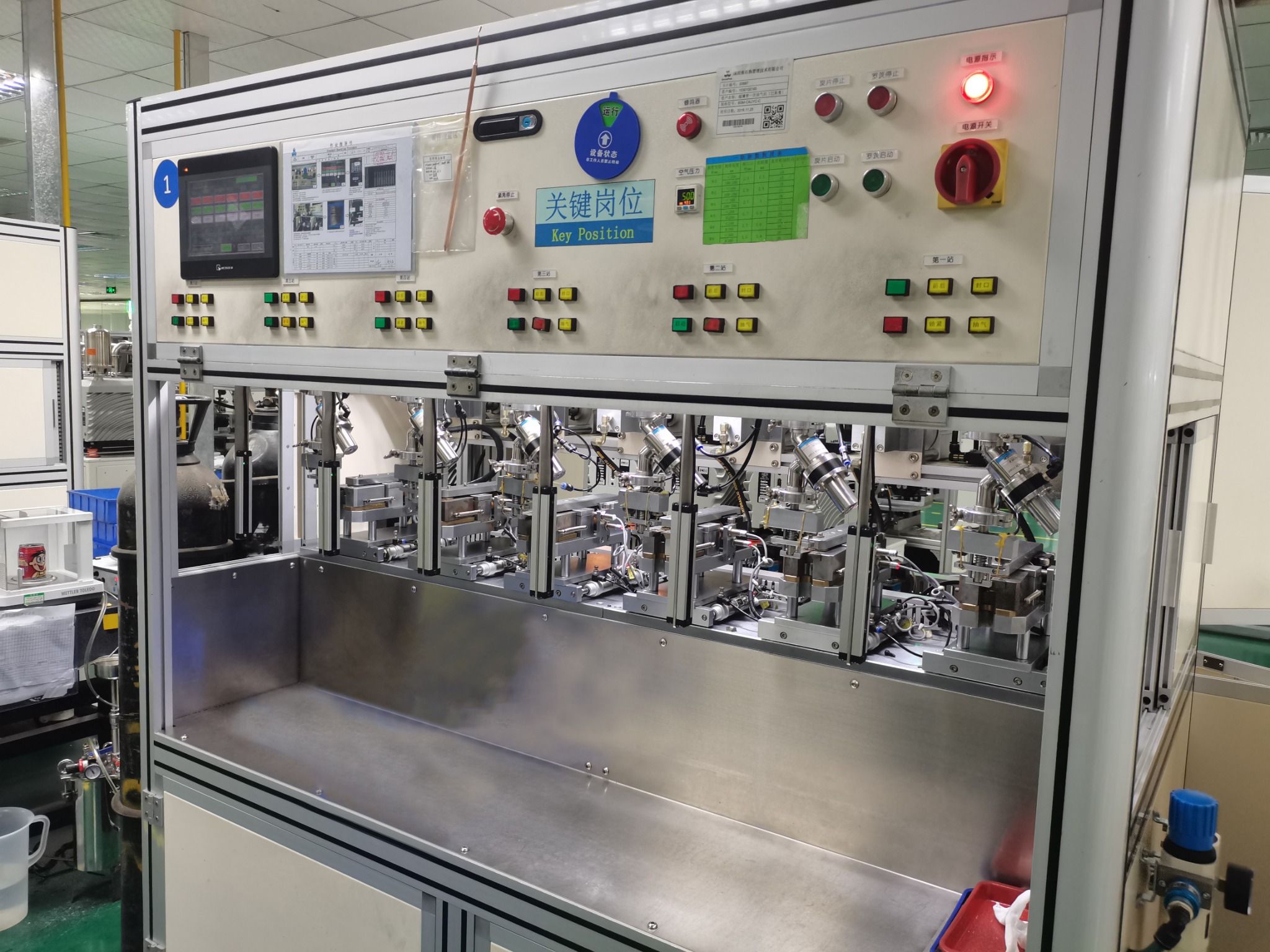

EB13 Ultra-thin Safety Light Curtain
Mô tả
Brand: ESPE
Model: EB13 Series
Product Feature:
1. Self-inspection in whole process, excellent vibration resistance and performance stability;
2. Easy to align with optical axis, strong to fight against optical or electromagnetic interference;
3. Low power consumption design, short response time and high reliability.
####
Technical Parameters
| Parameter of safety light curtain | |
| Power supply | DC10V~30V |
| Capacity | <5W |
| Beam space | 10mm, 20mm, 40mm |
| Resolution | 15mm, 25mm, 45mm |
| Beams | 10mm beam space：8, 12, 16……12820mm beam space：4, 6, 8, 10……6440mm beam space：4, 6, 8, 10……32 |
| Protective height | Protective height =（N-1）*beam space，N is beam quantity |
| Wave length | 940nm |
| Response time | Response time =(N* 0.1ms) + 0.4ms（N is beam quantity） |
| Type of output（OSSD） | PNP/ NPN semiconductors, current< 200mA, residual voltage: 1 V max, (Expect voltage influenced by lengthen wire), leakage current: 1 mA max. |
| Protective circuit | Over voltage protection, power supply reverse polarity protection, over current |
| Sensing distance | 0.1~0.5m、0.1~1m、0.1~2m(remark: if have light reflection, please let us know) |
| Anti-optical interference | 10000Lux(angle >5°） |
| Sensing method | Through-beam type |
| Synchronization | Wire synchronization |
| Enclosure material | Aluminum alloy |
| Enclosure rating | IP54 |
| Housing cross-section | 28*13mm |
| Vibration resistance | 10Hz～55Hz，amplitude0.35±0.05mm，20 times each in X、Y、Z direction |
| Ambient operating temperature | -10℃-55℃（without freezing） |
| Storage temperature | -30℃～70℃（without freezing） |
| Ambient operating humidity | When temperature is 20℃，humidity max 85% |
Wire Connection
Explanation of Model Number
Product Size
A: Upper and bottom cover B1: Upper stop-work range B2: Bottom stop-work range D: Beam space H: Protective height L: Total height | A=12mm; When D=10mm,B1=5mm;B2=5mm When D=20mm,B1=10mm;B2=10mm When D=40mm,B1=10mm;B2=30mm H is protective height:H=(beams-1)* beam space L is total height: L=A1+A2+B1+B2+H |
Option for Brackets
Model Selection Table
Beam space10mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 8 | 70 | 104 | EB13-0810 | Download |
| 12 | 110 | 144 | EB13-1210 | Download |
| 16 | 150 | 184 | EB13-1610 | Download |
| 20 | 190 | 224 | EB13-2010 | Download |
| 24 | 230 | 264 | EB13-2410 | Download |
| 28 | 270 | 304 | EB13-2810 | Download |
| 32 | 310 | 344 | EB13-3210 | Download |
| 36 | 350 | 384 | EB13-3610 | Download |
| 40 | 390 | 424 | EB13-4010 | Download |
| 44 | 430 | 464 | EB13-4410 | Download |
| 48 | 470 | 504 | EB13-4810 | Download |
| 52 | 510 | 544 | EB13-5210 | Download |
| 56 | 550 | 584 | EB13-5610 | Download |
| 60 | 590 | 624 | EB13-6010 | Download |
| 64 | 630 | 664 | EB13-6410 | Download |
| 68 | 670 | 704 | EB13-6810 | Download |
| 72 | 710 | 744 | EB13-7210 | Download |
| 76 | 750 | 784 | EB13-7610 | Download |
| 80 | 790 | 824 | EB13-8010 | Download |
| 84 | 830 | 864 | EB13-8410 | Download |
| 88 | 870 | 904 | EB13-8810 | Download |
| 92 | 910 | 944 | EB13-9210 | Download |
| 96 | 950 | 984 | EB13-9610 | Download |
| 100 | 990 | 1024 | EB13-10010 | Download |
| 104 | 1030 | 1064 | EB13-10410 | Download |
| 108 | 1070 | 1104 | EB13-10810 | Download |
| 112 | 1110 | 1144 | EB13-11210 | Download |
| 116 | 1150 | 1184 | EB13-11610 | Download |
| 120 | 1190 | 1224 | EB13-12010 | Download |
| 124 | 1230 | 1264 | EB13-12410 | Download |
| 128 | 1270 | 1304 | EB13-12810 | Download |
Beam space20mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 4 | 60 | 104 | EB13-0420 | Download |
| 6 | 100 | 144 | EB13-0620 | Download |
| 8 | 140 | 184 | EB13-0820 | Download |
| 10 | 180 | 224 | EB13-1020 | Download |
| 12 | 220 | 264 | EB13-1220 | Download |
| 14 | 260 | 304 | EB13-1420 | Download |
| 16 | 300 | 344 | EB13-1620 | Download |
| 18 | 340 | 384 | EB13-1820 | Download |
| 20 | 380 | 424 | EB13-2020 | Download |
| 22 | 420 | 464 | EB13-2220 | Download |
| 24 | 460 | 504 | EB13-2420 | Download |
| 26 | 500 | 544 | EB13-2620 | Download |
| 28 | 540 | 584 | EB13-2820 | Download |
| 30 | 580 | 624 | EB13-3020 | Download |
| 32 | 620 | 664 | EB13-3220 | Download |
| 34 | 660 | 704 | EB13-3420 | Download |
| 36 | 700 | 744 | EB13-3620 | Download |
| 38 | 740 | 784 | EB13-3820 | Download |
| 40 | 780 | 824 | EB13-4020 | Download |
| 42 | 820 | 864 | EB13-4220 | Download |
| 44 | 860 | 904 | EB13-4420 | Download |
| 46 | 900 | 944 | EB13-4620 | Download |
| 48 | 940 | 984 | EB13-4820 | Download |
| 50 | 980 | 1024 | EB13-5020 | Download |
| 52 | 1020 | 1064 | EB13-5220 | Download |
| 54 | 1060 | 1104 | EB13-5420 | Download |
| 56 | 1100 | 1144 | EB13-5620 | Download |
| 58 | 1140 | 1184 | EB13-5820 | Download |
| 60 | 1180 | 1224 | EB13-6020 | Download |
| 62 | 1220 | 1264 | EB13-6220 | Download |
| 64 | 1260 | 1304 | EB13-6420 | Download |
Beam space40mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 4 | 120 | 184 | EB13-0440 | Download |
| 6 | 200 | 264 | EB13-0640 | Download |
| 8 | 280 | 344 | EB13-0840 | Download |
| 10 | 360 | 424 | EB13-1040 | Download |
| 12 | 440 | 504 | EB13-1240 | Download |
| 14 | 520 | 584 | EB13-1440 | Download |
| 16 | 600 | 664 | EB13-1640 | Download |
| 18 | 680 | 744 | EB13-1840 | Download |
| 20 | 760 | 824 | EB13-2040 | Download |
| 22 | 840 | 904 | EB13-2240 | Download |
| 24 | 920 | 984 | EB13-2440 | Download |
| 26 | 1000 | 1064 | EB13-2640 | Download |
| 28 | 1080 | 1144 | EB13-2840 | Download |
| 30 | 1160 | 1224 | EB13-3040 | Download |
| 32 | 1240 | 1304 | EB13-3240 | Download |
