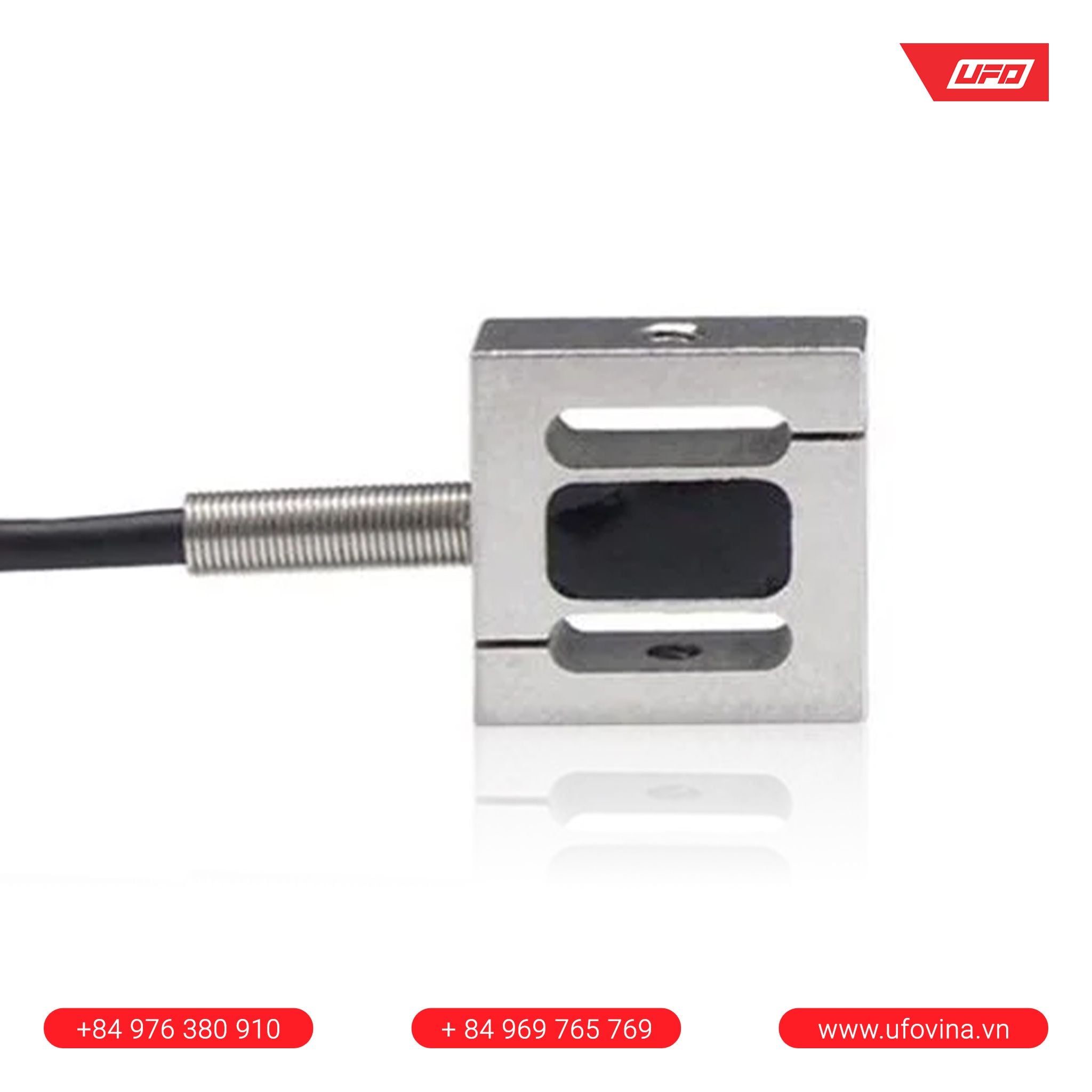

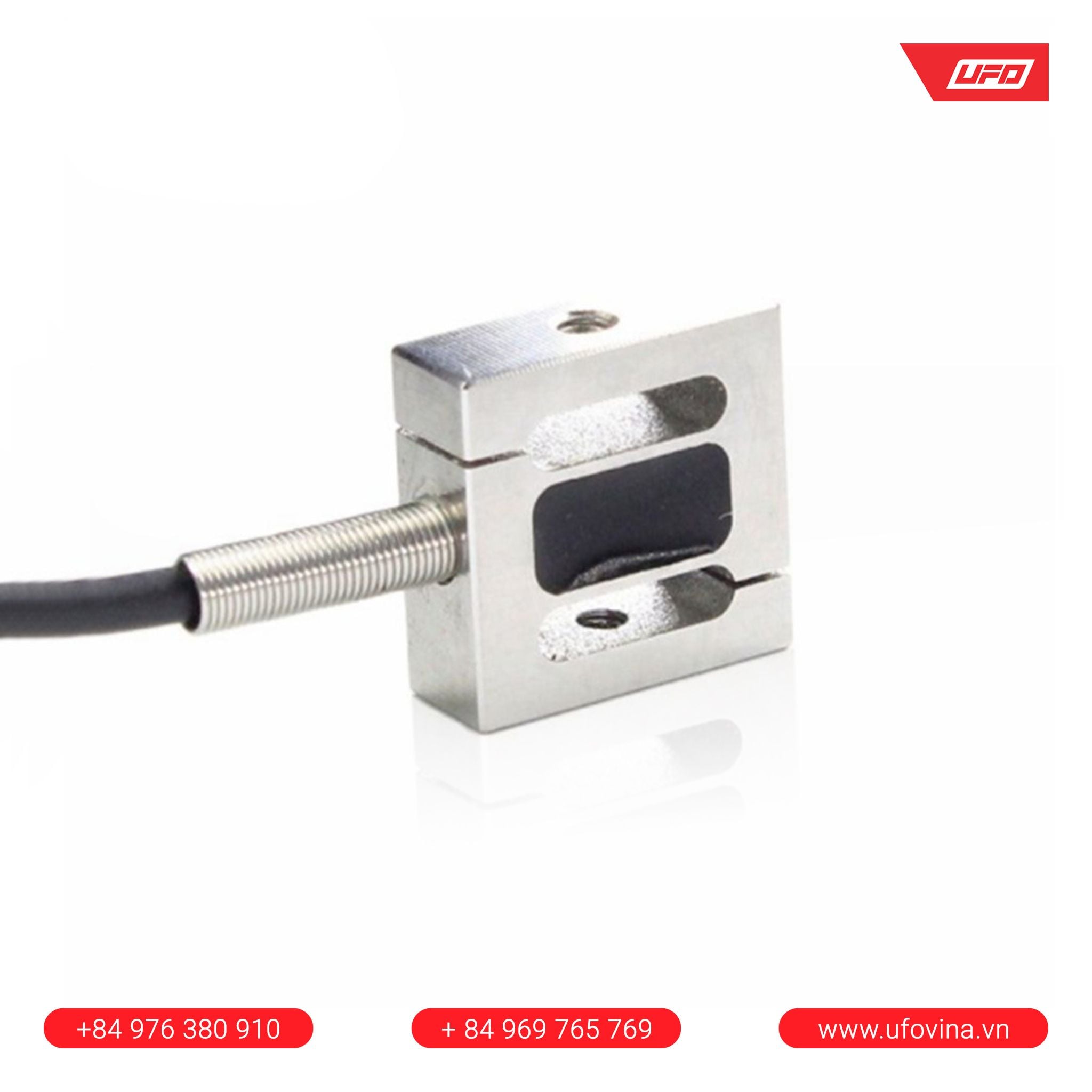

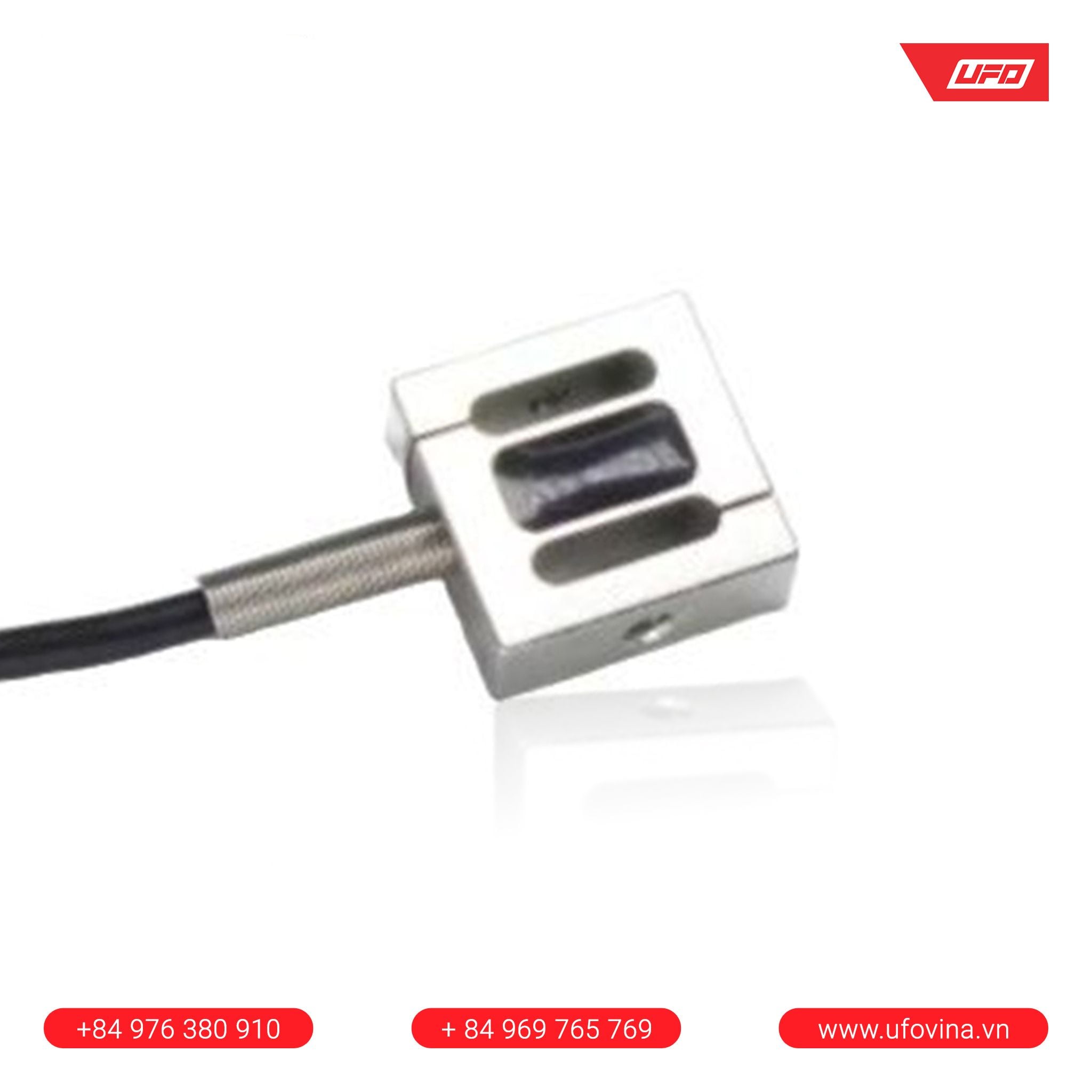

DYLY-109-U24 Type S pull pressure sensor

Features:
    ·Pull pressure two-way force
    ·The structure is compact
    ·The comprehensive accuracy is high
    ·Long-term stability is good
    ·Quality alloy steel with nickel plating
    ·Universal material test machine, hopper scale, hook scale, packaging scale, belt scale, plug force tester and other pull pressure test instruments and automation equipment and test fields.

Số lượng

Mô tả sản phẩm

Qualification

Rated quantitative schedule	Kg	10
Output sensitivity	mV/V	1.0-2.0
Zero point output	%F.S.	±2
Non-linear	%F.S.	0.1
lag	%F.S.	0.05
Repeatability	%F.S.	0.05
Creep (30 min)	%F.S.	0.05
Temperature sensitivity drift	%F.S./10℃	0.05
Zero temperature drift	%F.S./10℃	0.05
Response frequency	Hz	1k
Material		stainless steel
impedance	Ω	350
Insulation resistance	MΩ/100V DC	≥5000
Use voltage	V	5-10
Operating temperature range	℃	-20-80
Safety overload	%R.C.	150
Extreme overload	%R.C.	200
Cable line specifications	m	Φ2*2m
Cable limit pull force	N	98
TEDS		selectable

High temperature sensors are available, with a maximum operating temperature of 150℃.

2.High impedance sensors can be provided with an output impedance of 1000 Ω

Product Size Fig

Force Diagram

Up and lower threaded hole connection

Special function: Contact Maker DAYSENSOR or UFO VNTECH company
