Delta - DRL-24V480W1EN-24S
0₫
Mô tả

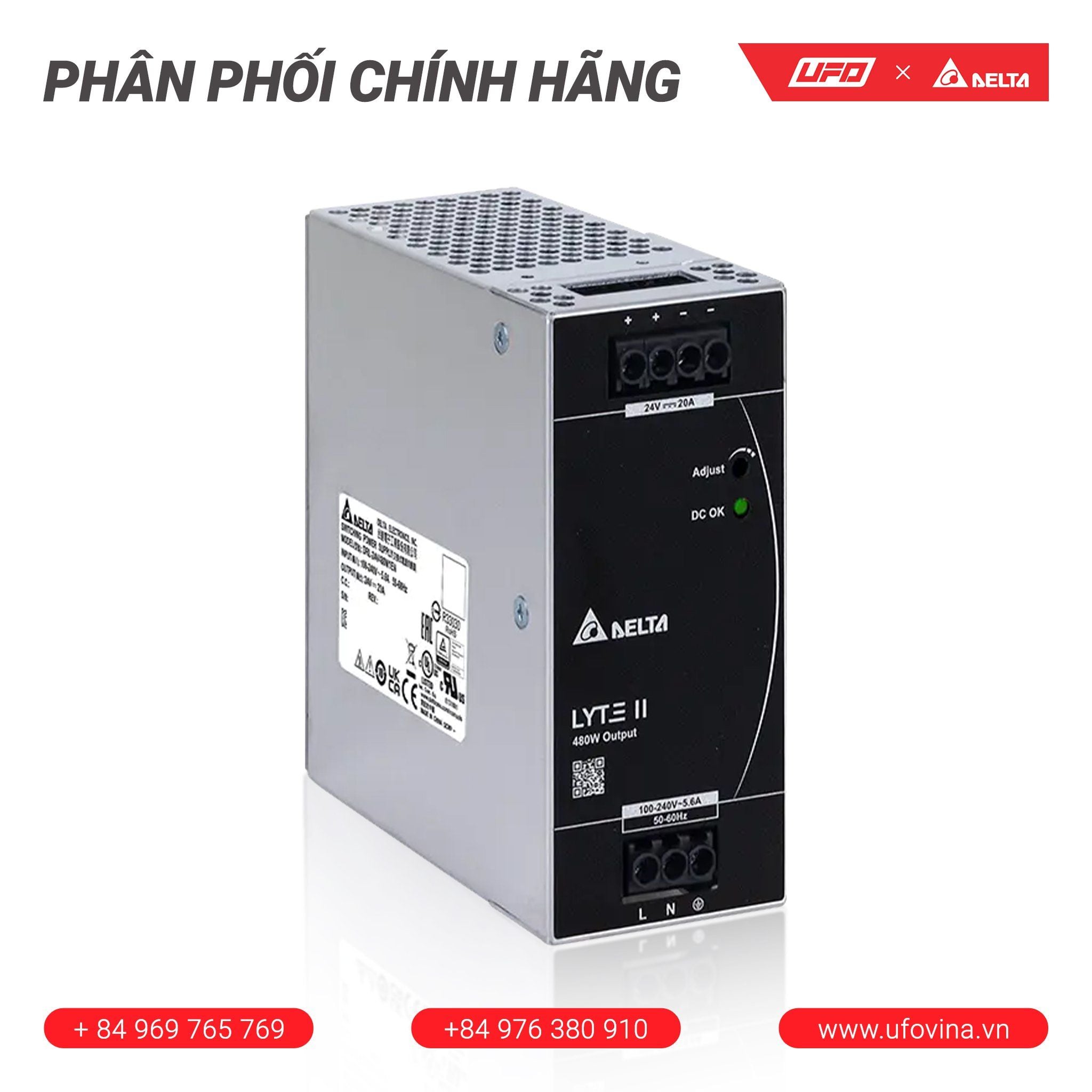

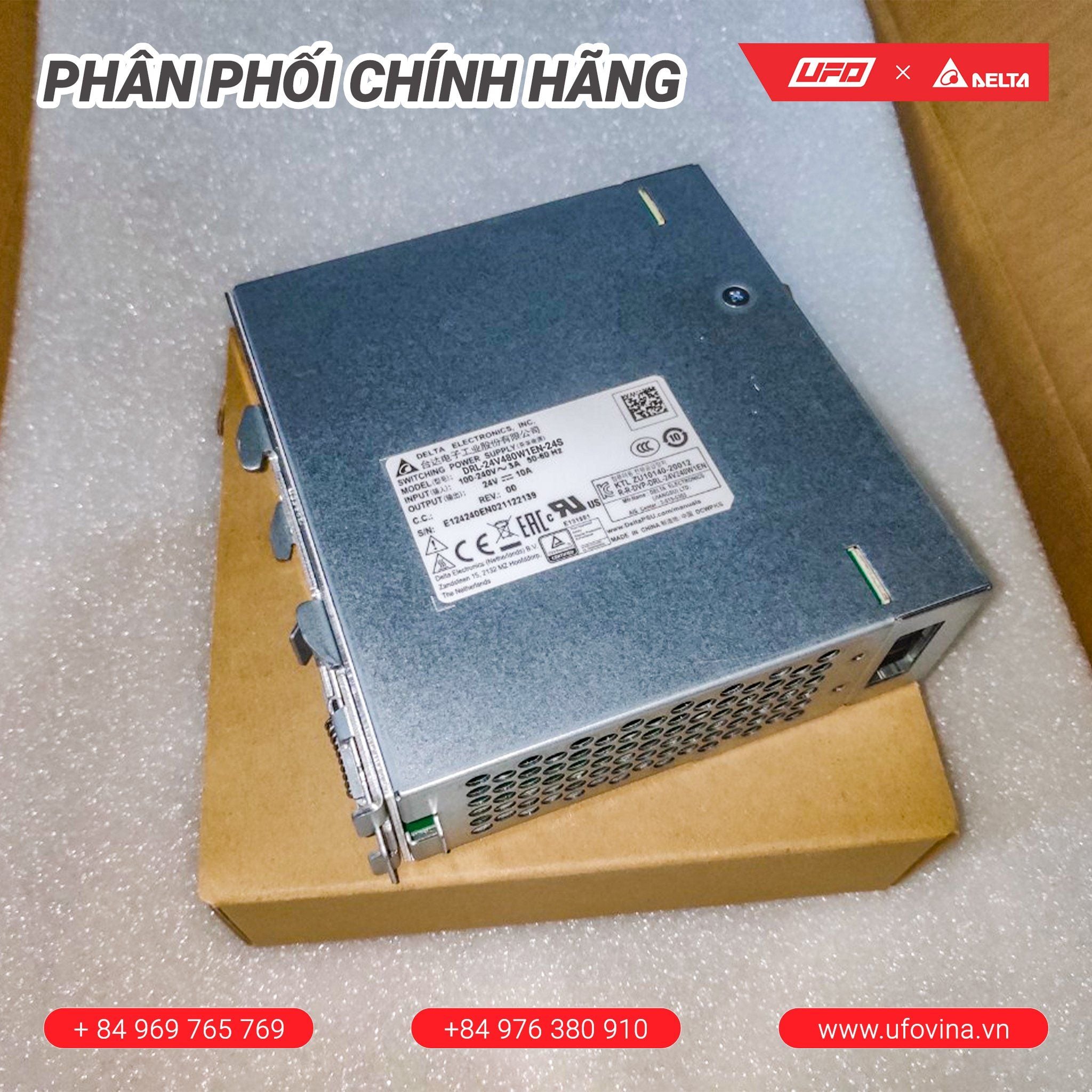

Nguồn DRL-24V480W1EN-24S là nguồn Delta gá DIN Rail cao cấp, gắn trên thanh ray được thiết kế nhỏ gọn. DRL-24V480W1EN-24S được ứng dụng rộng rãi trong cuộc sống, trong công nghiệp, dân dụng,đo lường, điều khiển, tự động hóa, tòa nhà,y tế...
Thông số kỹ thuật DRL-24V480W1EN-24S
Output
| Output Current | 20A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 24-28 Vdc |
| Output Power | 480W |
| Line Regulation | ± 0.5% @ 115 Vac & 230 Vac |
| Load Regulation | ± 0.5% |
| PARD | < 150 mVpp @ 0°C to +70°C < 450 mVpp @ -30°C to 0°C |
| Start-up Time | 500 ms typ. @ 115 Vac & 230 Vac (24 V) 800 ms typ. @ 115 Vac & 230 Vac (48 V) |
| Hold-up Time | 25 ms typ. @ 115 Vac & 230 Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 10% @ 115 Vac & 230 Vac input, 10-100% load (Slew Rate: 2.5 A/μS, 50% duty cycle @ 5 Hz & 10 kHz) |
| Start-up with Capacitive Loads | 8,000 μF Max |
| Rise Time | 30 ms typ. @ 115 Vac & 230Vac |
Input
| Nominal Input Voltage | 100-240 Vac |
| Input Voltage Range | 90-264 Vac |
| Nominal Input Frequency | 47-63Hz |
| Input Frequency Range | 480W |
| Input Current | 4.7 A typ. @ 115 Vac, 2.4 A typ. @ 230 Vac |
| Input Power (Standby Mode) | 0.75 W max @ 115 Vac & 230 Vac |
| Efficiency at 100% load | 93.0% typ. @ 230 Vac |
| Inrush Current | 40 A typ. @ 230 Vac |
| Power Factor at 100% load | > 0.96 @ 115 Vac & > 0.93 @ 230 Vac |
| Leakage Current | < 1.5 mA @ 240 Vac |
Protections
| Overvoltage | <34.0 V, SELV Output, Latch Mode |
| Overload / Overcurrent | 105 - 150% of rated load current, Auto-recovery Continuous current limit Mode (Vo > 80%) |
| Over Temperature | Latch Mode |
| Short Circuit | Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed) |
| Protection Against Shock | Class I with Primary Earth connection |
| Internal Fuse | T10 A / 250 V |
