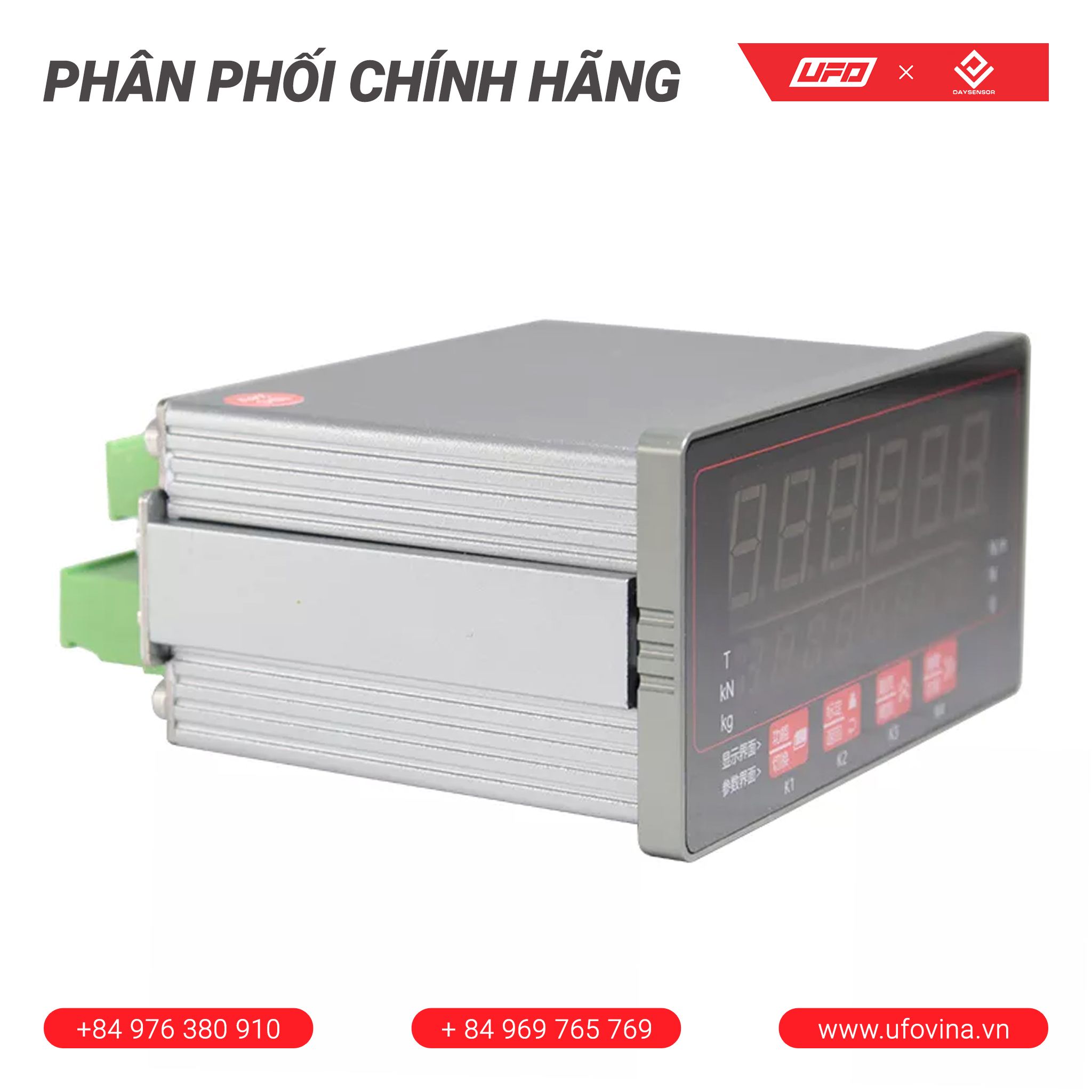

D810-U24

1.    Qualification

•     Measurement channel: 5V power supply, measurement accuracy is better than 0.05%, measurement speed 10,20,80,320Hz, temperature drift is less than 10ppm.
•     Display score: Measured Value Display-99999~999999.
•     Transmission output: 0~10V/4~20mA voltage band load greater than 10k, current band load less than 500
•     Communication rate: 2,400~, 256,000.
•     AD conversion: 16-bit AD precision acquisition.
•     Switch volume output: standard 2-way (optional four-way) relay / OC output.
•     Switch quantity input: 2-way open, IN1 and IN2 pull-down is valid.Use a OC or a passive node drive.
•     Power supply voltage: 15~30V DC (24VDC recommended).
•     Working environment: -20~70℃, relative humidity <90% (no dew out).

2.    Functional characteristics

•     Measurement function, the instrument adopts proportional measurement, acquisition, filtering, scaling transformation, nonlinear correction and display of measurement signal.
•     Upper and lower limit comparison function.
•     Peak and valley value capture function.
•     With the power zero, manual zero (keys, communication), automatic zero.
•     It has zero-bit tracking and creep tracking functions.
•     Sensor overrun record.
•     Optional isolated RS485 communication, supporting the Modbus-RTU protocol and the active delivery protocol.
•     Optional isolated transmission output supporting voltage output 0 ~ 10V or 4 ~ 20mA current output.

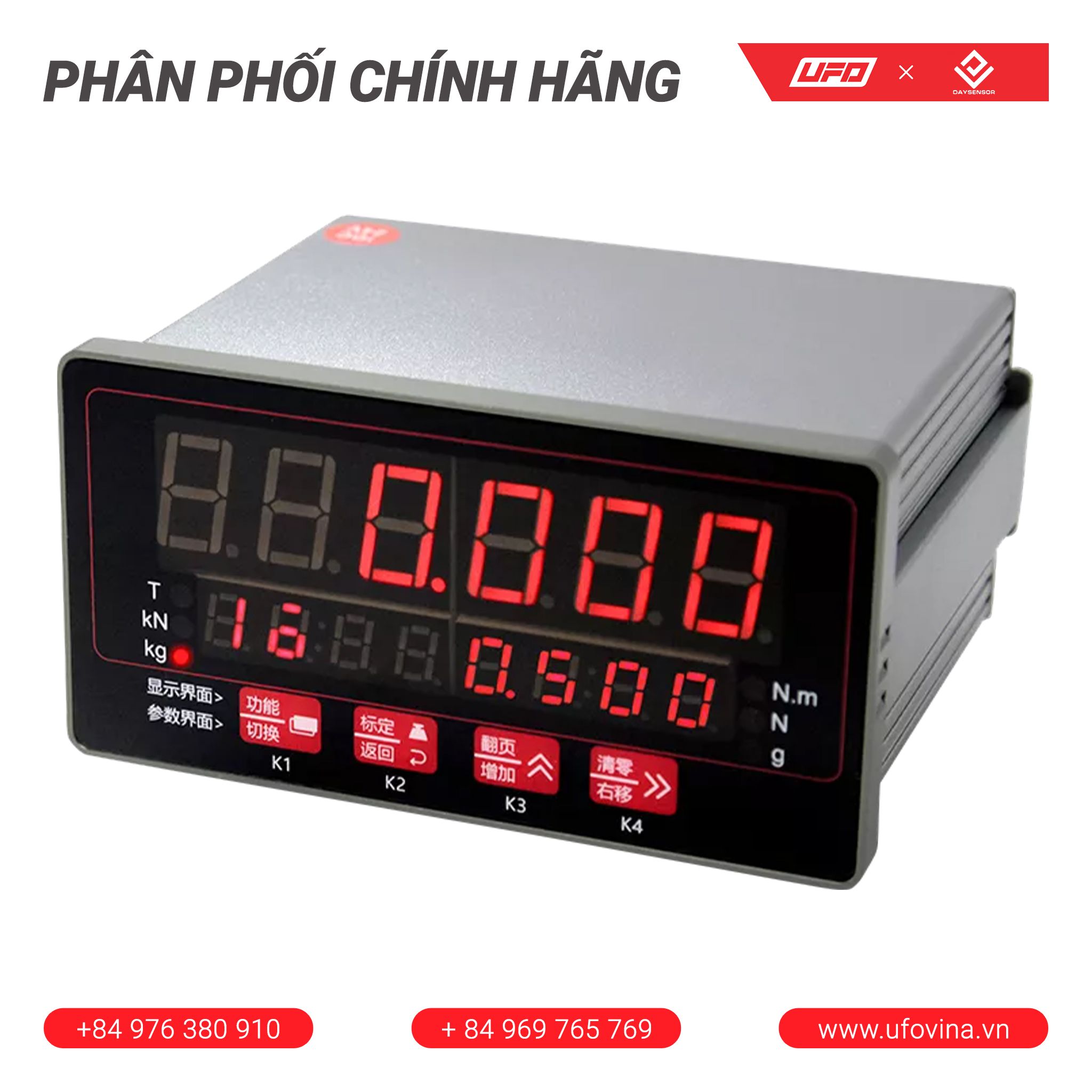

•     Double-row display, 6-bit main display and 8-bit auxiliary display, and 6-bit LED display units.
•     Capacitive touch button, with key lock function.
•     Added screen programmable display.
•     Measurement value offset function; measurement value automatically offset positive or negative after threshold (display value = measurement value + offset)
