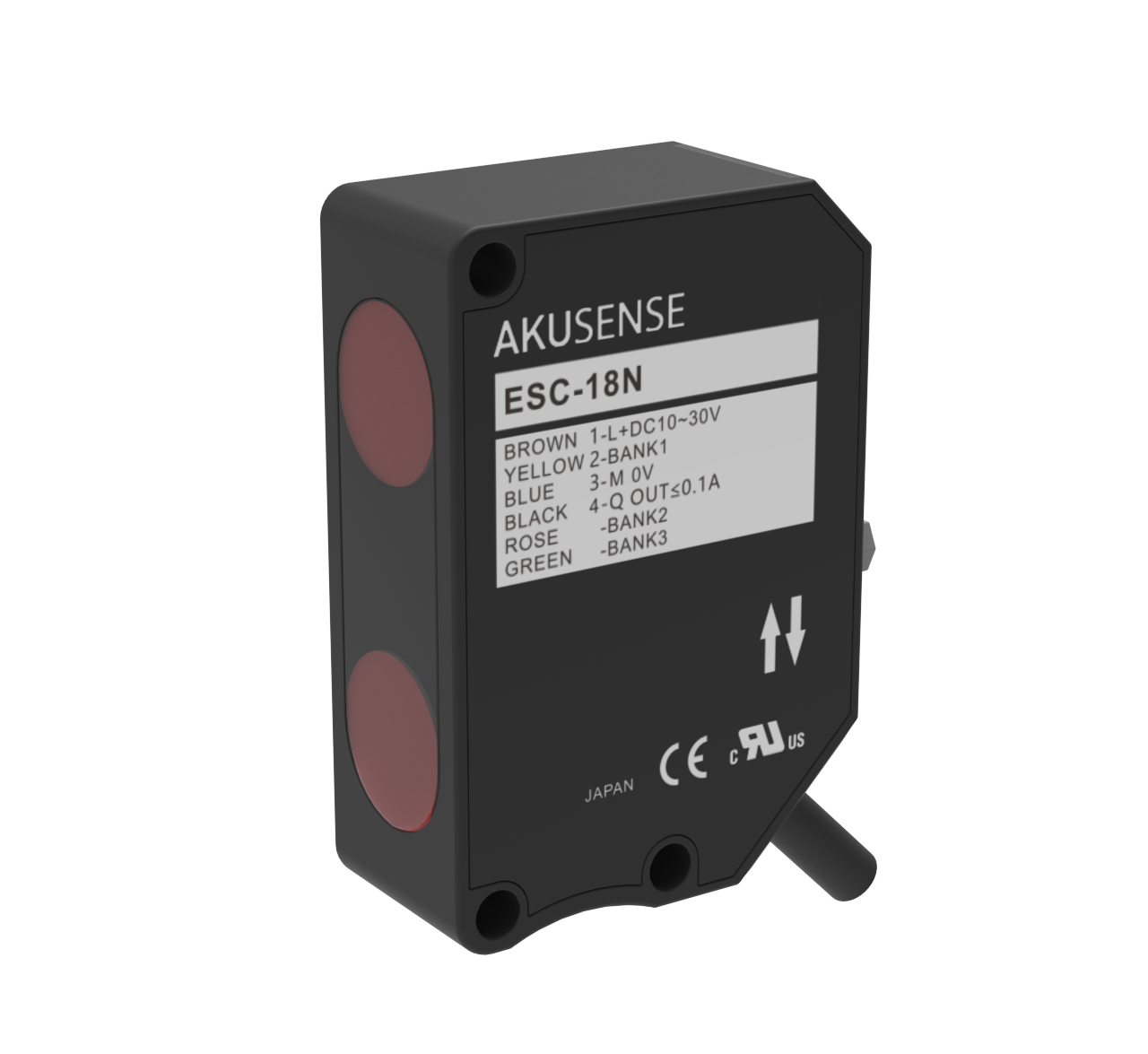

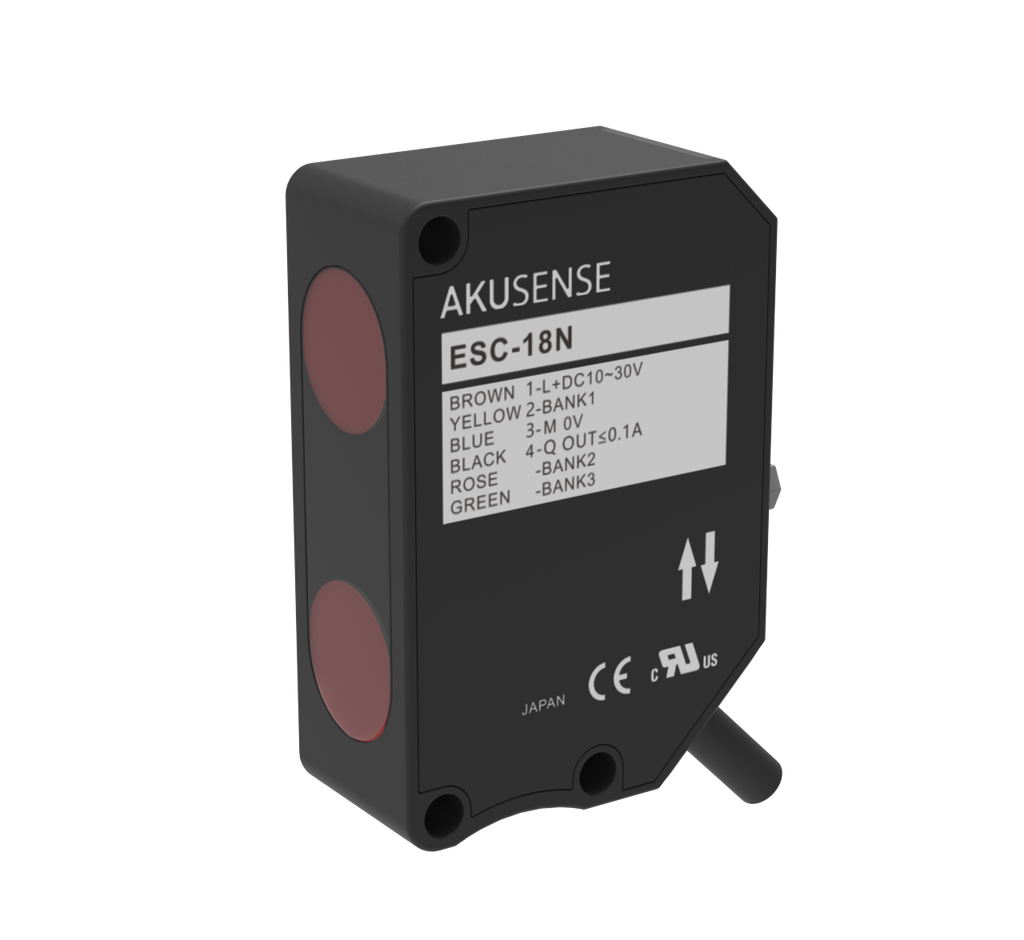

Akusense Color Mark/Detection Sensor ESC-18N
0₫
Mô tả
- Detection Method：Diffuse Reflection
- Detection Distance：18±2mm
- Output Mode：NPN Open Collector,≤100mA(30V DC)
- Response Time ：Color contrast mode: H1/0.25ms,H2/0.5ms,L/1.2ms,color mode: H1/0.8ms,H2/1.6ms,L/4ms
- Light Source：RGB Tricolor light Source
####
| Model | ESC-18N |
| Detection Method | Diffuse Reflection |
| Detection Distance | 18±2mm |
| Spot Size | Φ6mm/18mm |
| Output Mode | NPN Open Collector,≤100mA(30V DC) |
| Switch Mode | L.on(light entry action)/D.on(shading action) can be switched |
| Indicator | Output indicator: orange; Power LED: Green |
| Digital Screen | 7-segment,3-digit display(red and green LEDs) |
| Response Time | Color contrast mode: H1/0.25ms,H2/0.5ms,L/1.2ms,color mode: H1/0.8ms,H2/1.6ms,L/4ms |
| Working Voltage | 10~30V DC±10% |
| Current Consumption | ≤40mA |
| Load Current | ≤100mA |
| Ambient Illuminance | Sunlight≤10,000 Lux,incandescent lamp ≤3,000 Lux |
| Ambient Temperature | -25℃~+55℃,no freezing |
| Ambient Humidity | 35%~85%RH,no condensation |
| Protection Degree | IP67 |
| Light Source | RGB Tricolor light Source |
| Delay Function | OFF delay/ON delay/single pulse delay(0~990ms unit:10ms; 1~10s unit:1s) |
| Insulation Resistance | ≥20MΩ/500V DC |
| Impact Resistance | 50G（500m/s²），XYZ三个方向 |
| Connection Method | 2M/4 Core Cable |
| Material | Housing: ABS,Lens: PMMA |
| Accessary | Brackets,Screws |
Size structure:
Circuit diagram:
ESC&ESE Series Catalog:
