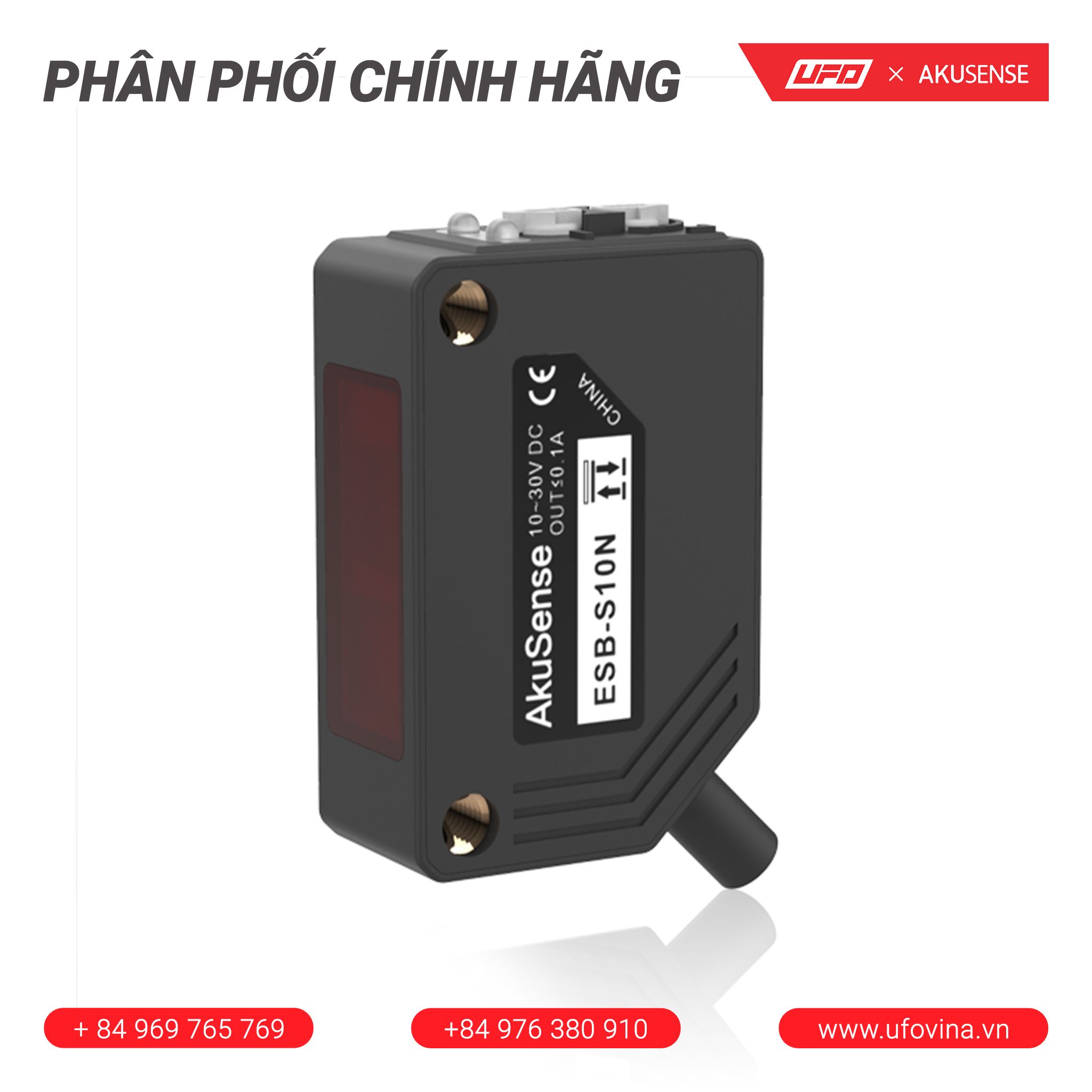

Akusense Background Suppression Sensor ESB-S10N
SKU: 0
0₫
Mô tả
ESB-S10N BGS photoelectric sensor
- Model: ESB-S10N
- Detection Method：Diffuse Reflection-Background Suppression
- Detection Distance：5~100mm(White matte paper)
- Output Mode：NPN Open Collector,≤100mA(30V DC)
- Response Time ：≤2ms
- Light Source：Red Light LED Small Light Spot 623nm(modulation)
####
| Model | ESB-S10N |
| Detection Method | Diffuse Reflection-Background Suppression |
| Detection Distance | 5~100mm(White matte paper) |
| Distance Setting | 30~100mm |
| Spot Size | Φ1.5mm/10cm |
| Differential Range | ≤5% |
| Output Mode | NPN Open Collector,≤100mA(30V DC) |
| Switch Mode | L.on(light entry action)/D.on(shading action) can be switched |
| Indicator | Output indicator: orange; Power LED: Green |
| Response Time | ≤2ms |
| Sensitivity Adjustment | 6-turn potentiometer |
| Light Source | Red Light LED Small Light Spot 623nm(modulation) |
| Working Voltage | 10~30V DC±10% |
| Current Consumption | <20mA |
| Load Current | <100mA |
| Ambient Illuminance | Sunlight≤5000 Lux,incandescent lamp ≤3000 Lux |
| Ambient Temperature | -25℃~+55℃,no freezing |
| Ambient Humidity | 35%~85%RH,no condensation |
| Protection Degree | IP65 |
| Connection Method | 2M/3 Core Cable |
| Material | PBT+glass fiber(shell) PMMA(lens) |
| Accessary | Screwdriver |

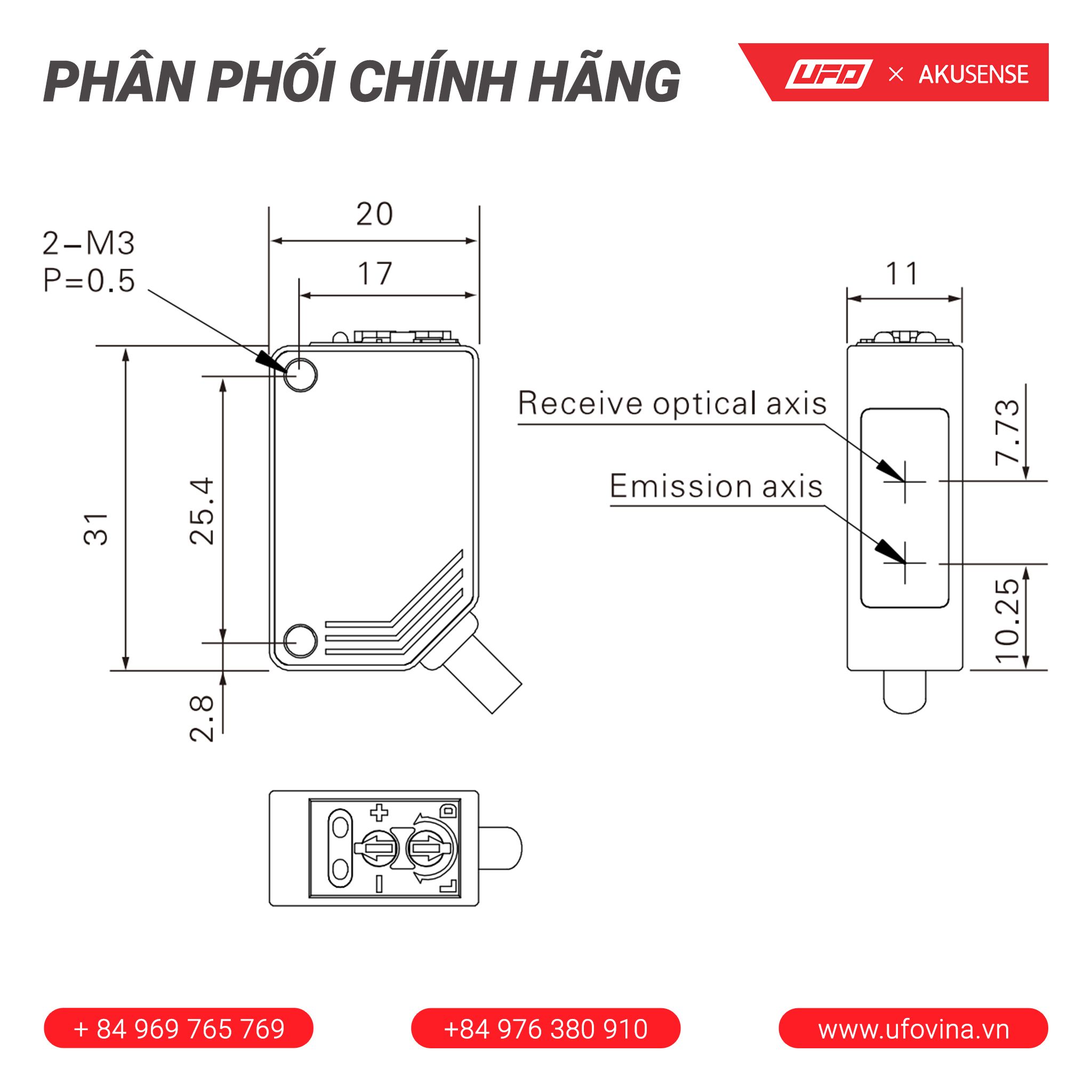

Size structure:

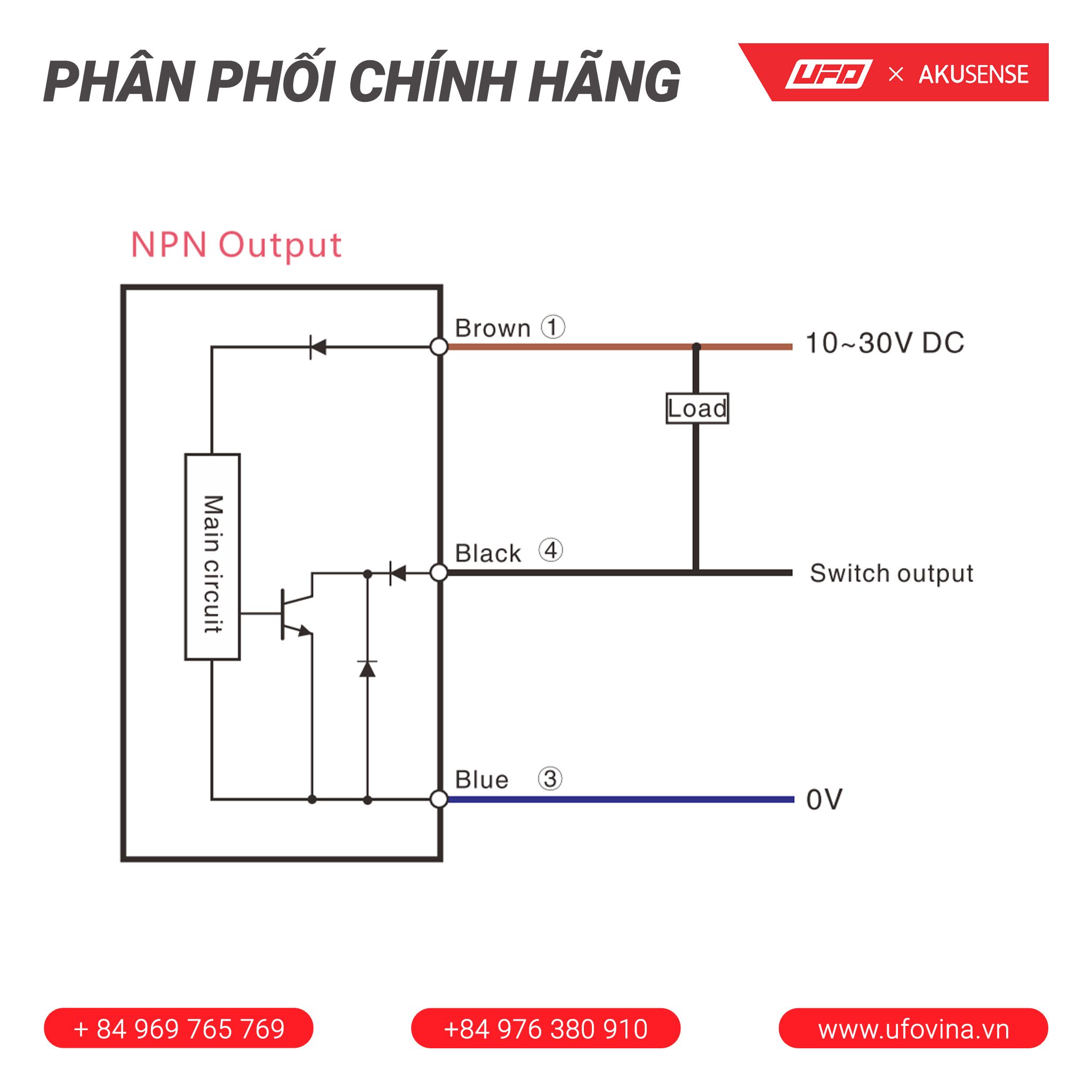

Circuit diagram:

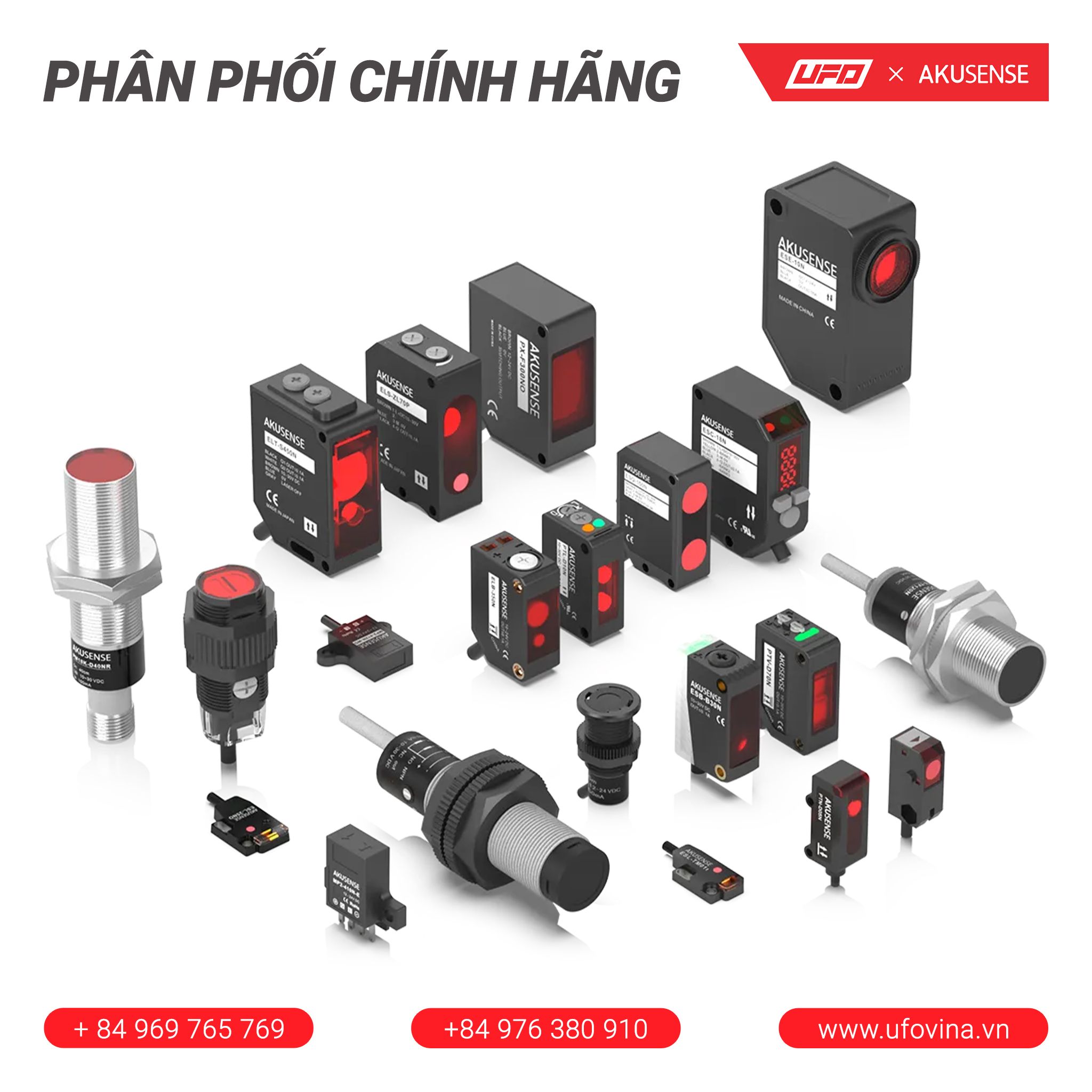

ESB Series Catalog:
