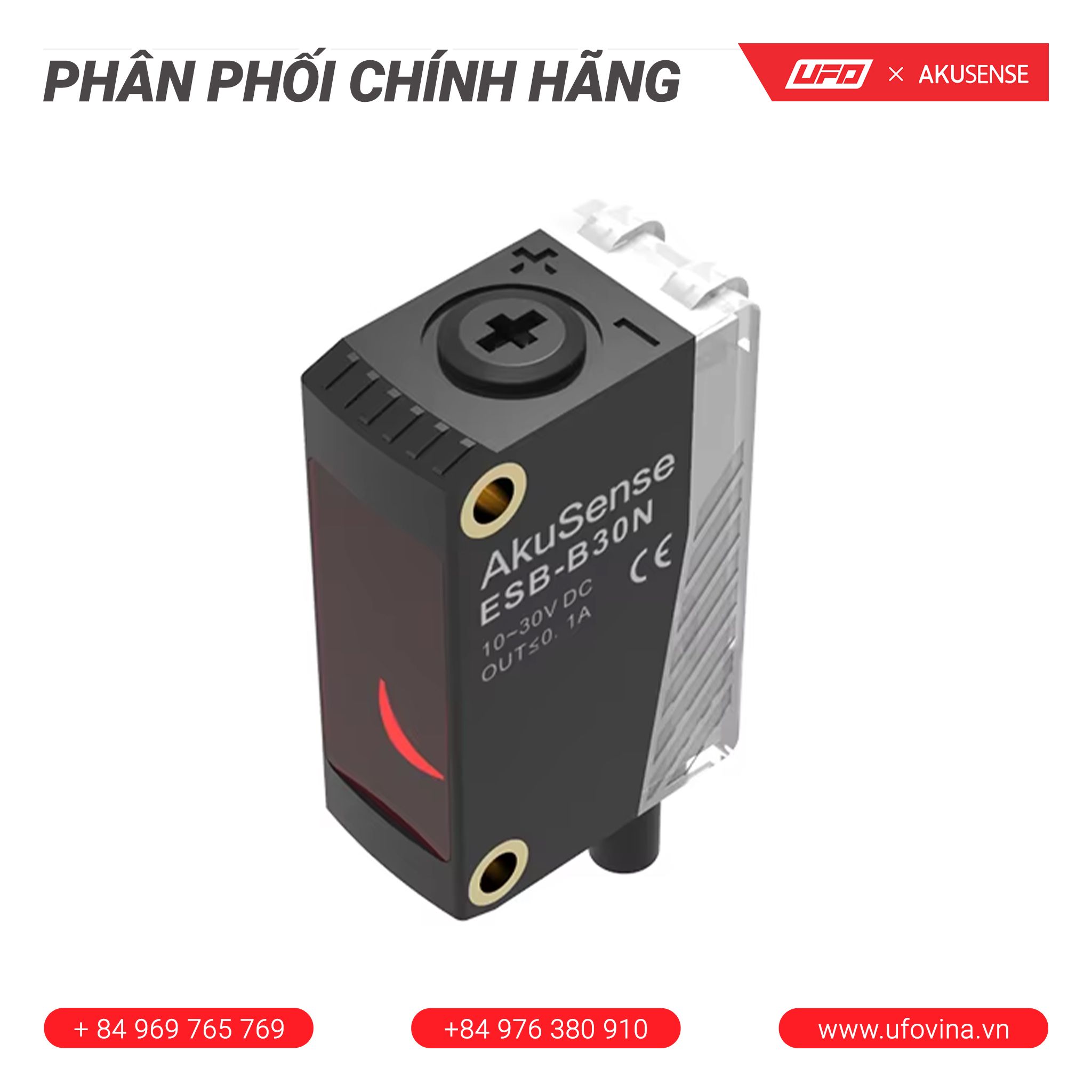

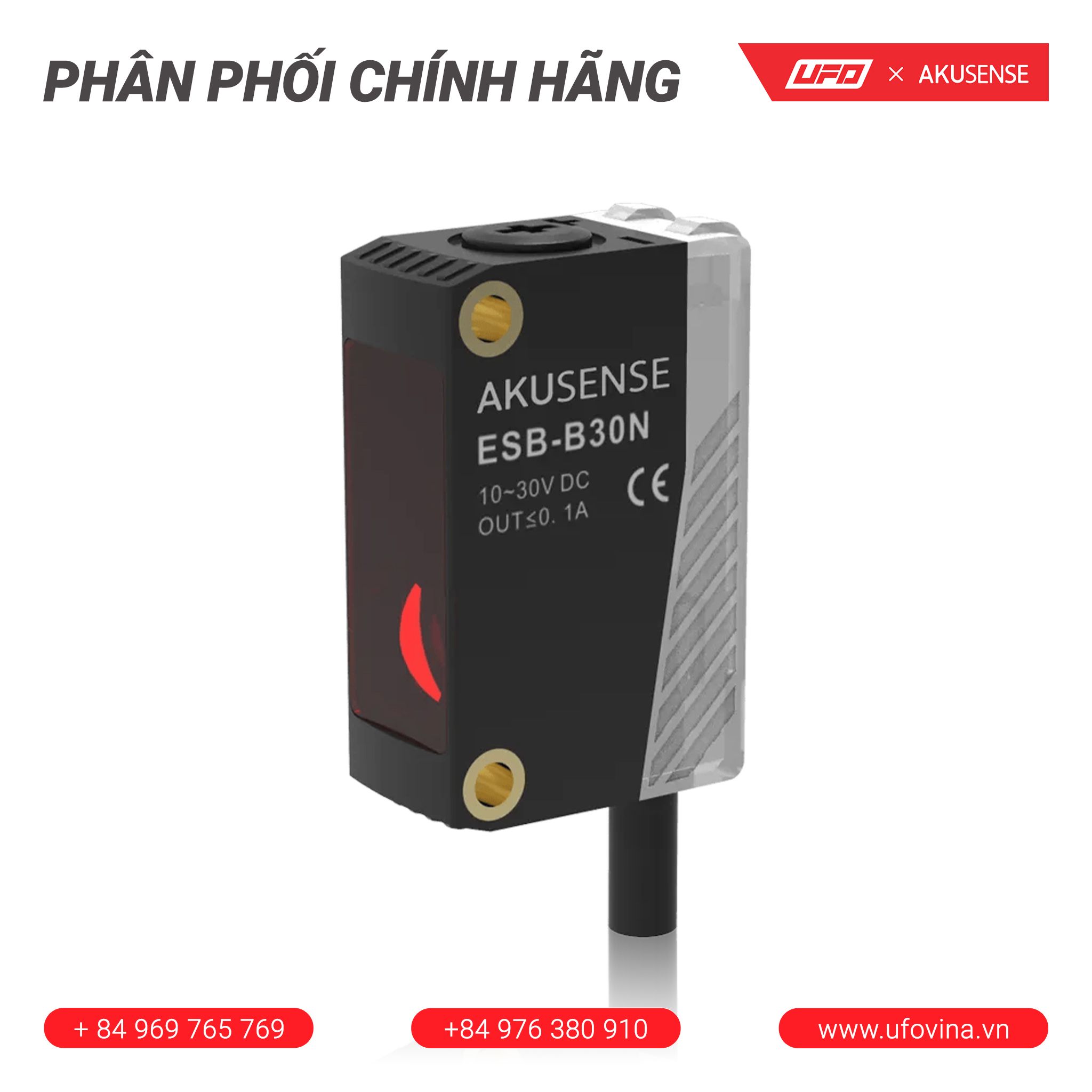

Background Suppression Sensor ESB-B30N

Giá gốc Giá bán: 0₫

- Detection Method:Diffuse Reflection-Background Suppression

- Detection Distance:2~300mm(White matte paper)

- Output Mode:NPN open collector

- Response Time :≤1ms

- Light Source:Red Light LED 623nm(modulation)

← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

ModelESB-B30N
Light SourceRed Light LED 623nm(modulation)
Spot SizeΦ16mm/30cm
Response Time≤1ms
Residual Voltage<1.5V
Current Consumption≤25mA
Load Current≤100mA
Circuit ProtectionPower supply reverse polarity protection,surge protection,short circuit protection
Ambient TemperatureWhen working:-25℃~+55℃ no freezing; no condensation; When storing:-30~+70℃
Ambient HumidityWhen working:35%~85%RH,no condensation; When storing:35%~95%RH
Insulation Resistance20MΩ
Ambient IlluminanceSunlight≤10,000 Lux,incandescent lamp ≤3,000 Lux
MaterialPBT+glass fiber(shell) PMMA(lens)
Detection MethodDiffuse Reflection-Background Suppression
Detection Distance2~300mm(White matte paper)
Distance Setting30~300mm
Differential Range≤5%
Output ModeNPN open collector
Switch ModeL.on(light entry action)/D.on(shading action) can be switched
IndicatorOutput indicator: orange; Power LED: Green
Sensitivity Adjustment6-turn potentiometer
Working Voltage10~30V DC
Protection DegreeIP67
Connection Method2M/3 core cable 4mm diameter
AccessaryScrewdriver
Withstand Voltage1000V/AC,50/60Hz 1minute
Group Pulse±2000V(5kHZ/50kHZ)
Static Electricity±8000V(air discharge)
Vibration Resistance10~50Hz,0.5mm amplitude,2 hours each in the three directions of X,Y and Z

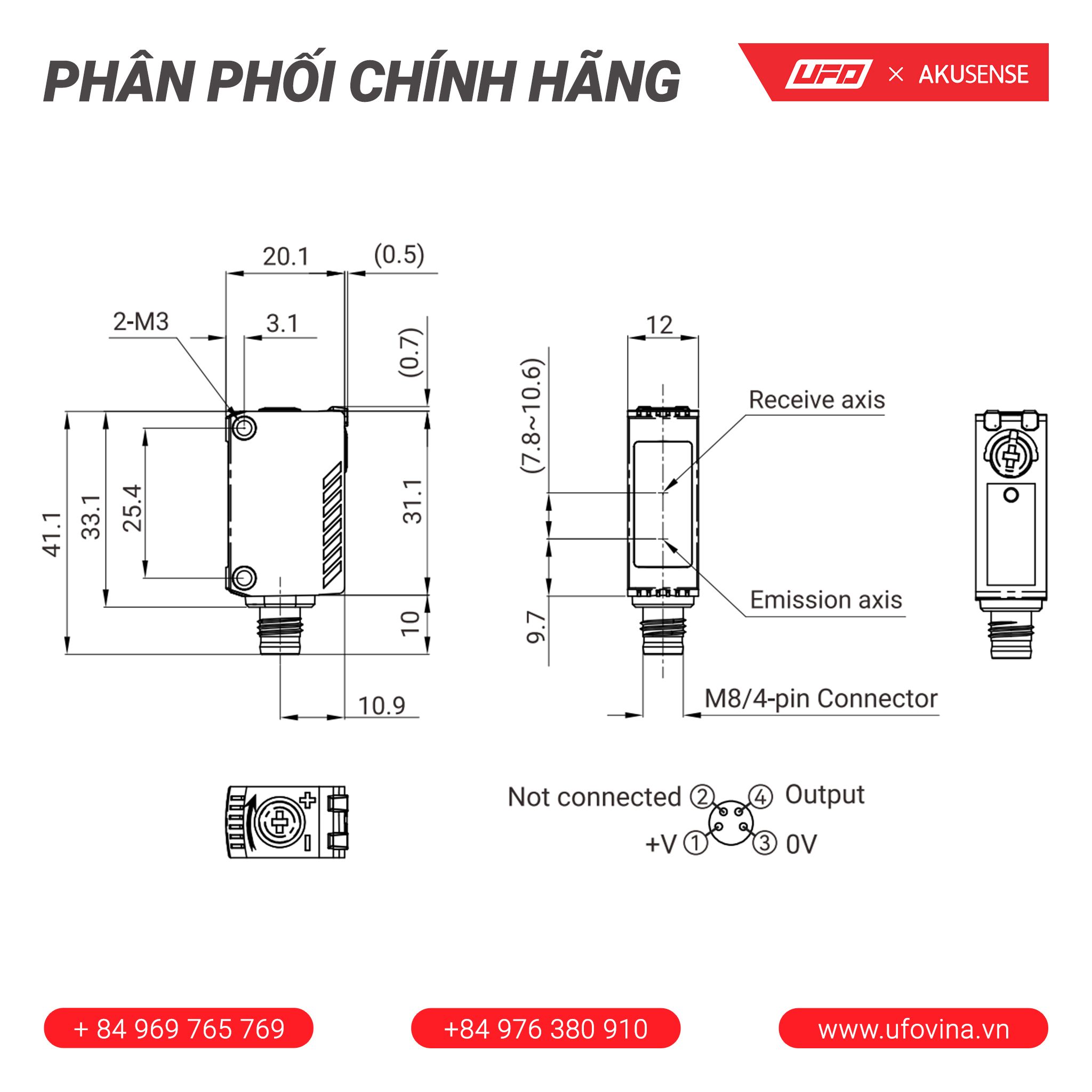

Size structure:

BGS Type (ESB Series)

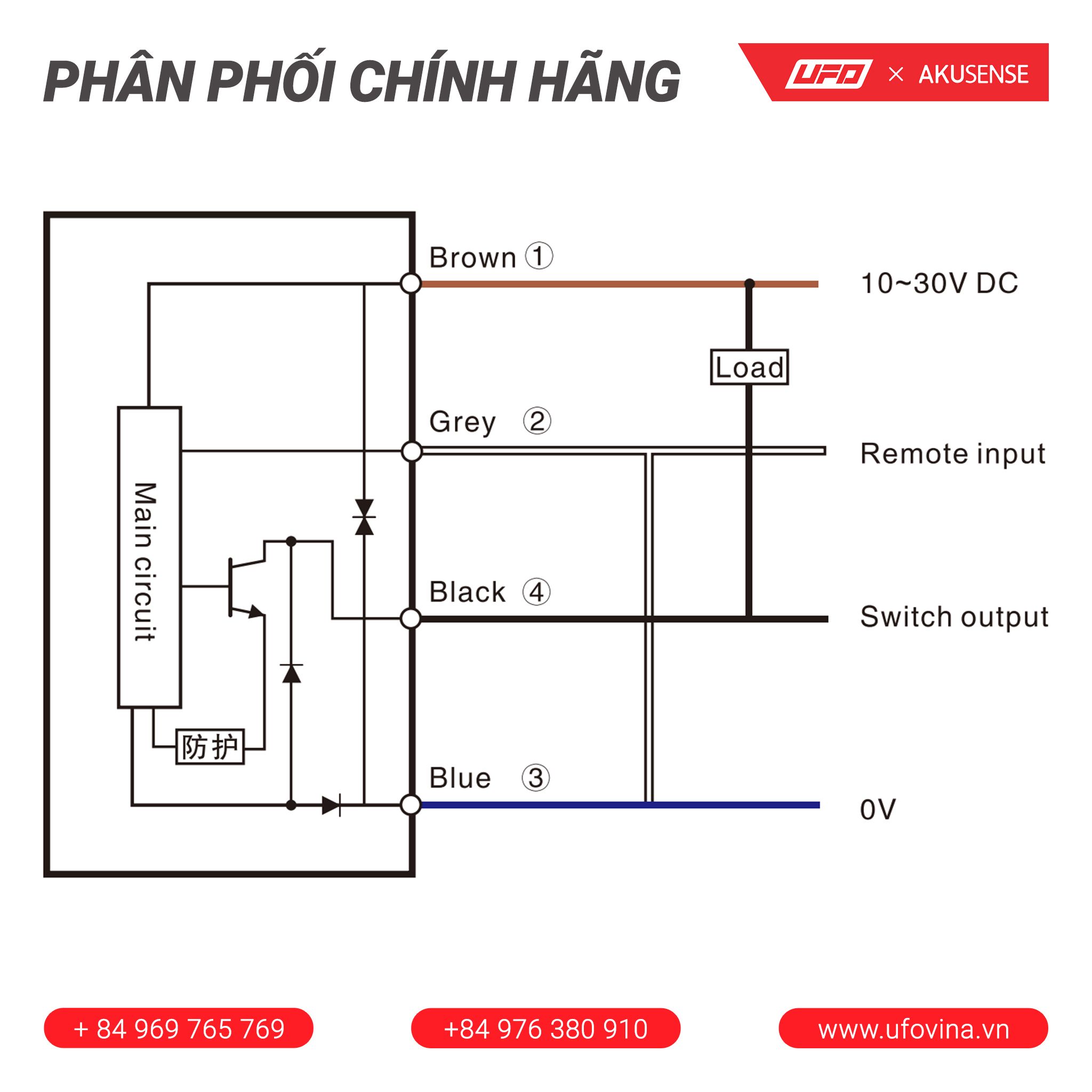

Circuit diagram

BGS Type (ESB Series)
