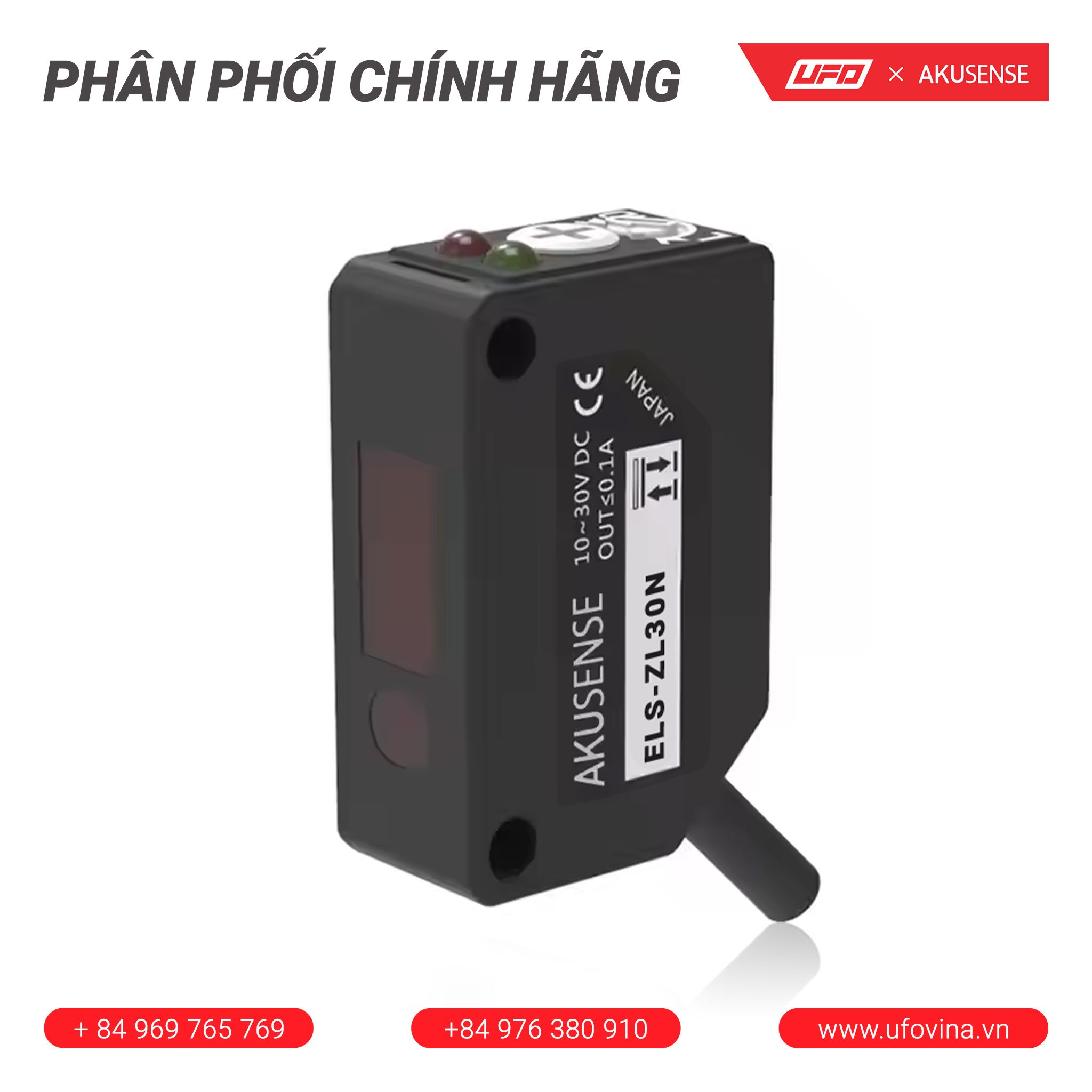

Akusense Background Suppression Sensor ELS-ZL30N
0₫
Mô tả
- Detection Method：Diffuse Reflection
- Detection Distance：10~300mm
- Output Mode：NPN
- Response Time ：0.3ms
- Light Source：Laser 650nm
####
| Model | ELS-ZL30N |
| Detection Method | Diffuse Reflection |
| Type | Long-range Type |
| Detection Distance | 10~300mm |
| Spot Size | Φ1.5mm/300mm |
| Switch Mode | L.on(light entry action)/D.on(shading action) can be switched |
| Indicator | Output indicator: orange; Power LED: Green |
| Response Time | 0.3ms |
| Sensitivity Adjustment | 4-turn adjuster |
| Light Source | Laser 650nm |
| Laser Class | Class1 |
| Working Voltage | 10~30V DC±10% |
| Output Mode | NPN |
| Current Consumption | ≤30mA |
| Protection Degree | IP67 |
| Housing Material | Shell: containing glass fiber ABS; Lens: PMMA |
| Ambient Temperature | -10℃~+50℃,no freezing |
| Ambient Humidity | 35%~85%RH,no condensation |
| Impact Resistance | 50G(500m/s²) |
| Detection Setting | 50~300mm |
| Accessary | Bracket,screw |

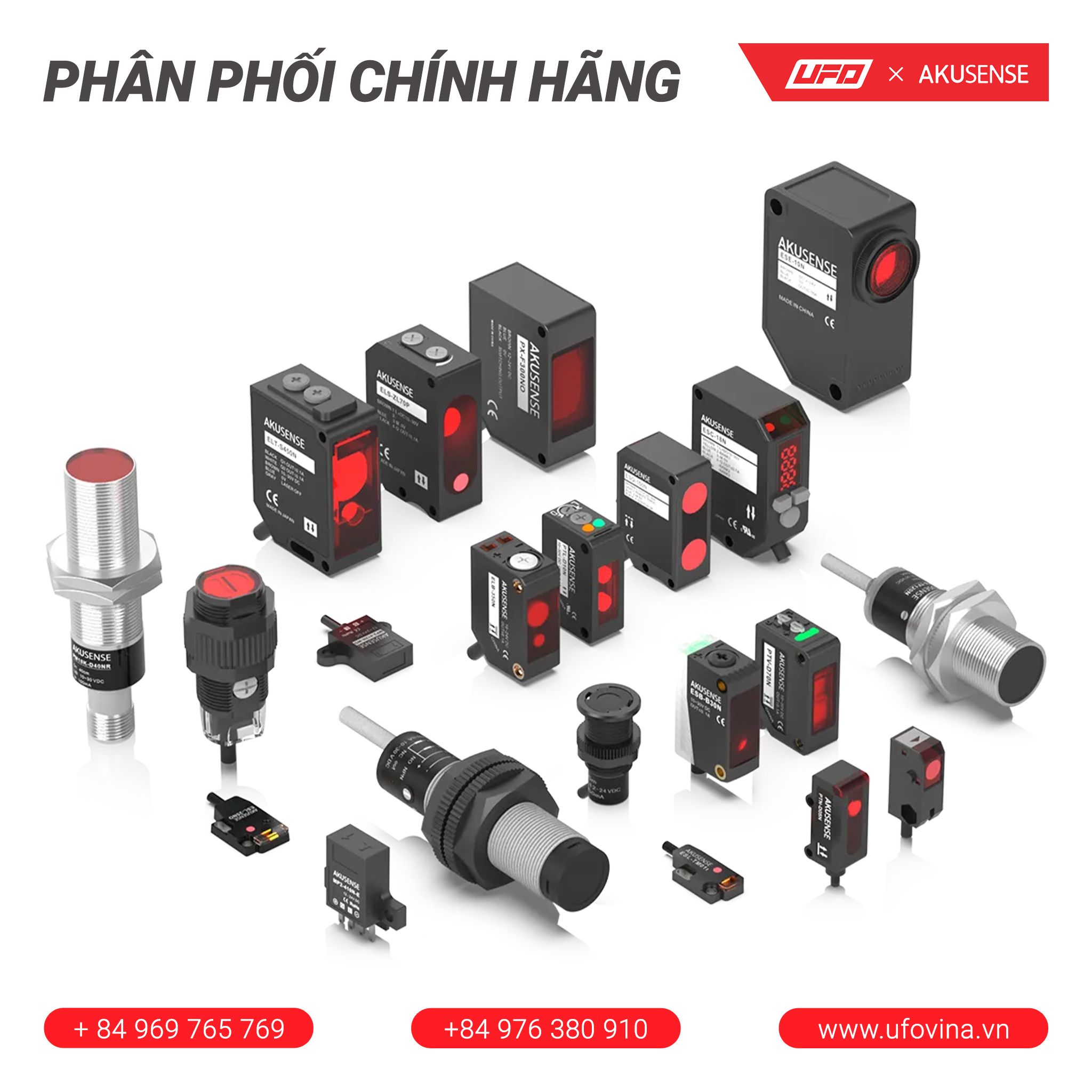

ELS&ELT Series Catalog:
