Area Safety Light Curtain
Mô tả
Brand: ESPE
Model: ESQC Series
Product Feature:

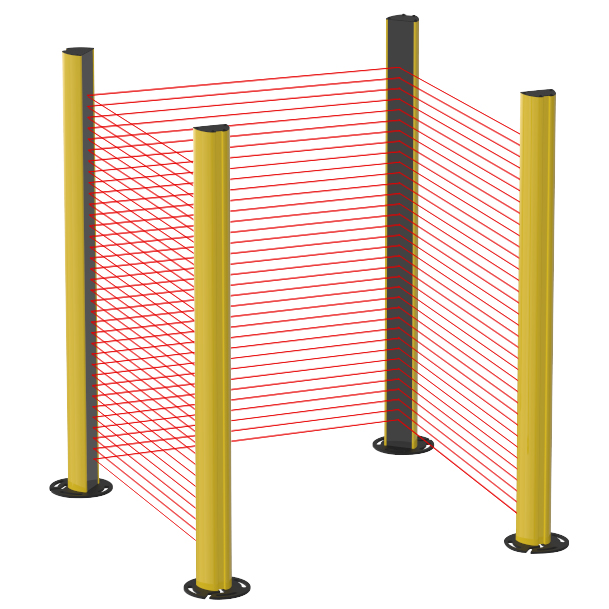

1.ESQC series fence area safety light curtain can be used to assist ESN and ESE series safety curtain to form polyhedron protection.
2.It is mainly used for safety protection of automatic areas. The area protection shields can be directly installed on the ground surface, and it can be used with different numbers of reflector shields to form multiple safety barriers.
####
Technical Parameters
| Parameter of safety light curtain | |
| Supply voltage | DC10V~30V |
| Capacity | <5W |
| Beam space | 10mm, 20mm, 40mm |
| Resolution | 20mm, 30mm, 50mm |
| Beams | 10mm beam space:32, 36, 40……17620mm beam space: 16, 18, 20……8840mm beam space:8, 10, 12……44 |
| Protective height | Protective height =（N-1）*beam gap，N is beam quantity |
| Wave length | 940nm |
| Response time | Response time =(N * 0.1ms) + 0.4ms, N is beam quantity |
| Type of output（OSSD） | PNP/NPN semiconductors，current <200mA max, residual voltage: 1 V max. leakage current: 1mA max. (Expect voltage influenced by lengthen wire). |
| Protective circuit | Overload voltage protection, power supply reverse polarity protection, over current protection. |
| Sensing distance | 0.1~30m (If reflective light environment, please let us know in advanced) |
| Anti-optical interference | 10000Lux(I >5°) |
| Sensing method | Through-beam type |
| Synchronization | Wire synchronization |
| Enclosure material | Aluminum alloy |
| Enclosure rating | IP65 |
| Housing cross-section | 99.6*75mm |
| Vibration resistance | 10Hz～55Hz，double amplitude each in X、Y、Z directions for 20 times. |
| Ambient operating temperature | -10℃-55℃（with no freezing） |
| Storage temperature | -30℃～70℃（with no freezing） |
| Ambient operating humidity | When temperature is 20℃，humidity max 85% |
Wire Connection
Explanation of Model Number
Product Size
A1: Upper cover A2: Bottom cover + aviation cap B1: Upper stop-work range B2: Bottom stop-work range D: Beam space H: Protective height | L: Total height of light curtain L(total height)=A1+A2+B1+B2+H (referning ESN or ESE size) H(protective height)=(beams-1)*beam space Height of column =L+100 |
Model Selection Table
Beam space 10mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 32 | 310 | 390 | ESQC-N3210 | Download |
| 36 | 350 | 430 | ESQC-N3610 | Download |
| 40 | 390 | 470 | ESQC-N4010 | Download |
| 44 | 430 | 510 | ESQC-N4410 | Download |
| 48 | 470 | 550 | ESQC-N4810 | Download |
| 52 | 510 | 590 | ESQC-N5210 | Download |
| 56 | 550 | 630 | ESQC-N5610 | Download |
| 60 | 590 | 670 | ESQC-N6010 | Download |
| 64 | 630 | 710 | ESQC-N6410 | Download |
| 68 | 670 | 750 | ESQC-N6810 | Download |
| 72 | 710 | 790 | ESQC-N7210 | Download |
| 76 | 750 | 830 | ESQC-N7610 | Download |
| 80 | 790 | 870 | ESQC-N8010 | Download |
| 84 | 830 | 910 | ESQC-N8410 | Download |
| 88 | 870 | 950 | ESQC-N8810 | Download |
| 92 | 910 | 990 | ESQC-N9210 | Download |
| 96 | 950 | 1030 | ESQC-N9610 | Download |
| 100 | 990 | 1070 | ESQC-N10010 | Download |
| 104 | 1030 | 1110 | ESQC-N10410 | Download |
| 108 | 1070 | 1150 | ESQC-N10810 | Download |
| 112 | 1110 | 1190 | ESQC-N11210 | Download |
| 116 | 1150 | 1230 | ESQC-N11610 | Download |
| 120 | 1190 | 1270 | ESQC-N12010 | Download |
| 124 | 1230 | 1310 | ESQC-N12410 | Download |
| 128 | 1270 | 1350 | ESQC-N12810 | Download |
| 132 | 1310 | 1390 | ESQC-N13210 | Download |
| 136 | 1350 | 1430 | ESQC-N13610 | Download |
| 140 | 1390 | 1470 | ESQC-N14010 | Download |
| 144 | 1430 | 1510 | ESQC-N14410 | Download |
| 148 | 1470 | 1550 | ESQC-N14810 | Download |
| 152 | 1510 | 1590 | ESQC-N15210 | Download |
| …… | …… | …… | …… | |
| 176 | 1750 | 1930 | ESQC-N17610 | Download |
Beam space 20mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 16 | 300 | 490 | ESQC-N1620 | Download |
| 18 | 340 | 530 | ESQC-N1820 | Download |
| 20 | 380 | 570 | ESQC-N2020 | Download |
| 22 | 420 | 610 | ESQC-N2220 | Download |
| 24 | 460 | 650 | ESQC-N2420 | Download |
| 26 | 500 | 690 | ESQC-N2620 | Download |
| 28 | 540 | 730 | ESQC-N2820 | Download |
| 30 | 580 | 770 | ESQC-N3020 | Download |
| 32 | 620 | 810 | ESQC-N3220 | Download |
| 34 | 660 | 850 | ESQC-N3420 | Download |
| 36 | 700 | 890 | ESQC-N3620 | Download |
| 38 | 740 | 930 | ESQC-N3820 | Download |
| 40 | 780 | 970 | ESQC-N4020 | Download |
| 42 | 820 | 1010 | ESQC-N4220 | Download |
| 44 | 860 | 1050 | ESQC-N4420 | Download |
| 46 | 900 | 1090 | ESQC-N4620 | Download |
| 48 | 940 | 1130 | ESQC-N4820 | Download |
| 50 | 980 | 1170 | ESQC-N5020 | Download |
| 52 | 1020 | 1210 | ESQC-N5220 | Download |
| 54 | 1060 | 1250 | ESQC-N5420 | Download |
| 56 | 1100 | 1290 | ESQC-N5620 | Download |
| 58 | 1140 | 1330 | ESQC-N5820 | Download |
| 60 | 1180 | 1370 | ESQC-N6020 | Download |
| 62 | 1220 | 1410 | ESQC-N6220 | Download |
| 64 | 1260 | 1450 | ESQC-N6420 | Download |
| 66 | 1300 | 1490 | ESQC-N6620 | Download |
| 68 | 1340 | 1530 | ESQC-N6820 | Download |
| 70 | 1380 | 1570 | ESQC-N7020 | Download |
| 72 | 1420 | 1610 | ESQC-N7220 | Download |
| 74 | 1460 | 1650 | ESQC-N7420 | Download |
| 76 | 1500 | 1690 | ESQC-N7620 | Download |
| …… | …… | …… | …… | |
| 88 | 1740 | 1930 | ESQC-N8820 | Download |
Beam space 40mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 8 | 280 | 470 | ESQC-N0840 | Download |
| 10 | 360 | 550 | ESQC-N1040 | Download |
| 12 | 440 | 630 | ESQC-N1240 | Download |
| 14 | 520 | 710 | ESQC-N1440 | Download |
| 16 | 600 | 790 | ESQC-N1640 | Download |
| 18 | 680 | 870 | ESQC-N1840 | Download |
| 20 | 760 | 950 | ESQC-N2040 | Download |
| 22 | 840 | 1030 | ESQC-N2240 | Download |
| 24 | 920 | 1110 | ESQC-N2440 | Download |
| 26 | 1000 | 1190 | ESQC-N2640 | Download |
| 28 | 1080 | 1270 | ESQC-N2840 | Download |
| 30 | 1160 | 1350 | ESQC-N3040 | Download |
| 32 | 1240 | 1430 | ESQC-N3240 | Download |
| 34 | 1320 | 1510 | ESQC-N3440 | Download |
| 36 | 1400 | 1590 | ESQC-N3640 | Download |
| 38 | 1480 | 1670 | ESQC-N3840 | Download |
| 40 | 1560 | 1750 | ESQC-N4040 | Download |
| 42 | 1640 | 1830 | ESQC-N4240 | Download |
| 44 | 1720 | 1910 | ESQC-N4440 | Download |
