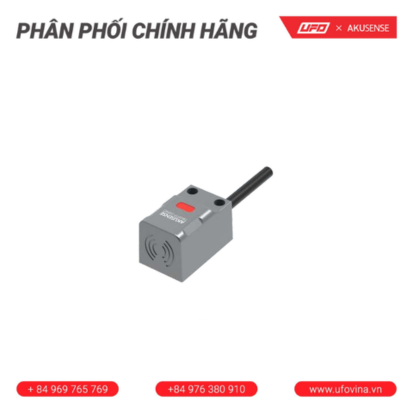

Akusense Square Type TBQF18-05NO-UF
0₫
Mô tả
Mô tả sản phẩm TBQF18-05NO-UF
Cảm biến tiệm cận cảm ứng TBQF18-05NO-UF NPN NO, khoảng cách phát hiện 5mm, IP67, hoạt động ổn định 10-30VDC, phù hợp môi trường công nghiệp.
Output Mode：NPN
Indicator：Operating status: LED
Insulation Resistance：≥50MΩ (500VDC) between power terminal and housing
####
Thông số kỹ thuật TBQF18-05NO-UF
| Model | TBQF18-05NO-UF |
| Working principle | Inductive sensor |
| Housing | square |
| Installation type | Flush |
| Sensing distance | 5.0mm±10% |
| Sensing Surface Material | ABS |
| Detected objects | Metal sensor |
| Indicator | Operating status: LED |
| Sensing range adjustment | None |
| Switching output | Normally open |
| Output Mode | NPN |
| External input | None |
| Switching frequency | 300Hz |
| Repeatability | 1% |
| Hysteresis | 15% |
| Operating Voltage | 10~30V DC |
| Current Consumption | ≤10mA |
| Residual Voltage | 1.5 V or less |
| Load Current | 150mA |
| Leakage Current | < 0.01 mA |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Dielectric strength | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| Vibration Resistance | 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Circuit Protection | Short circuit protection |
| Operating temperature | -25~+75℃ |
| Operating humidity | 35~85% |
| Enclosure rating | IP67 |
| Connection type | 2m/3 wire cable |
| Dimension | 34.0x18.0x18.0mm |
| Material | Plastic +ABS |
| Weight | 0.05kg |
